Colorizing Logs

About Me

Alexey, ClickHouse developer.

What is This Talk About?

— not about ClickHouse?

— not about databases??

— not about backend???

— not about development????

— not about technology?????

What is This Talk About?

— about one small task...

Running Server in Terminal

It outputs logs:

Useful Things in Logs

— logging level;

— logger name;

— query identifier;

— thread number;

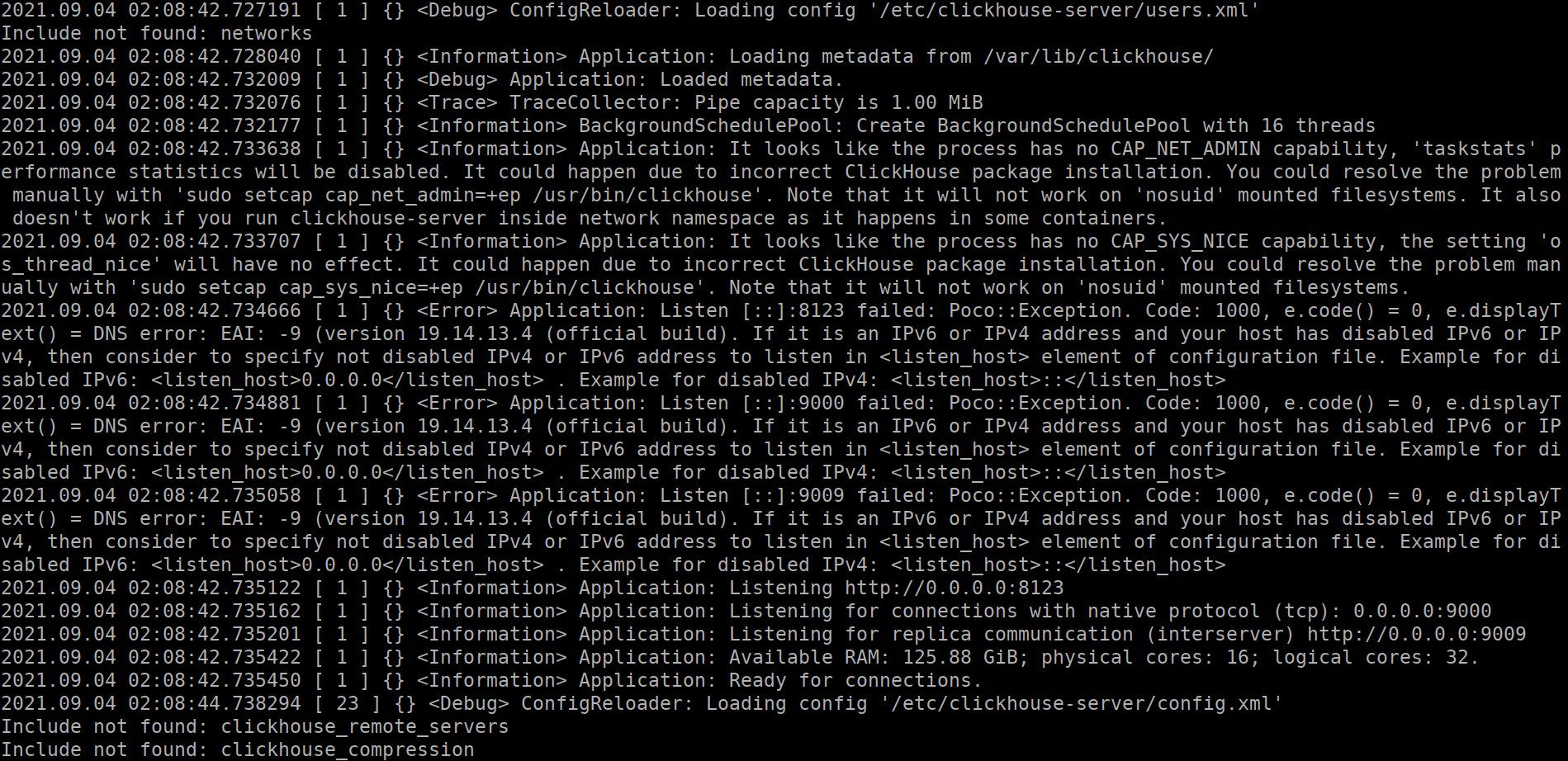

Boring Gray Logs

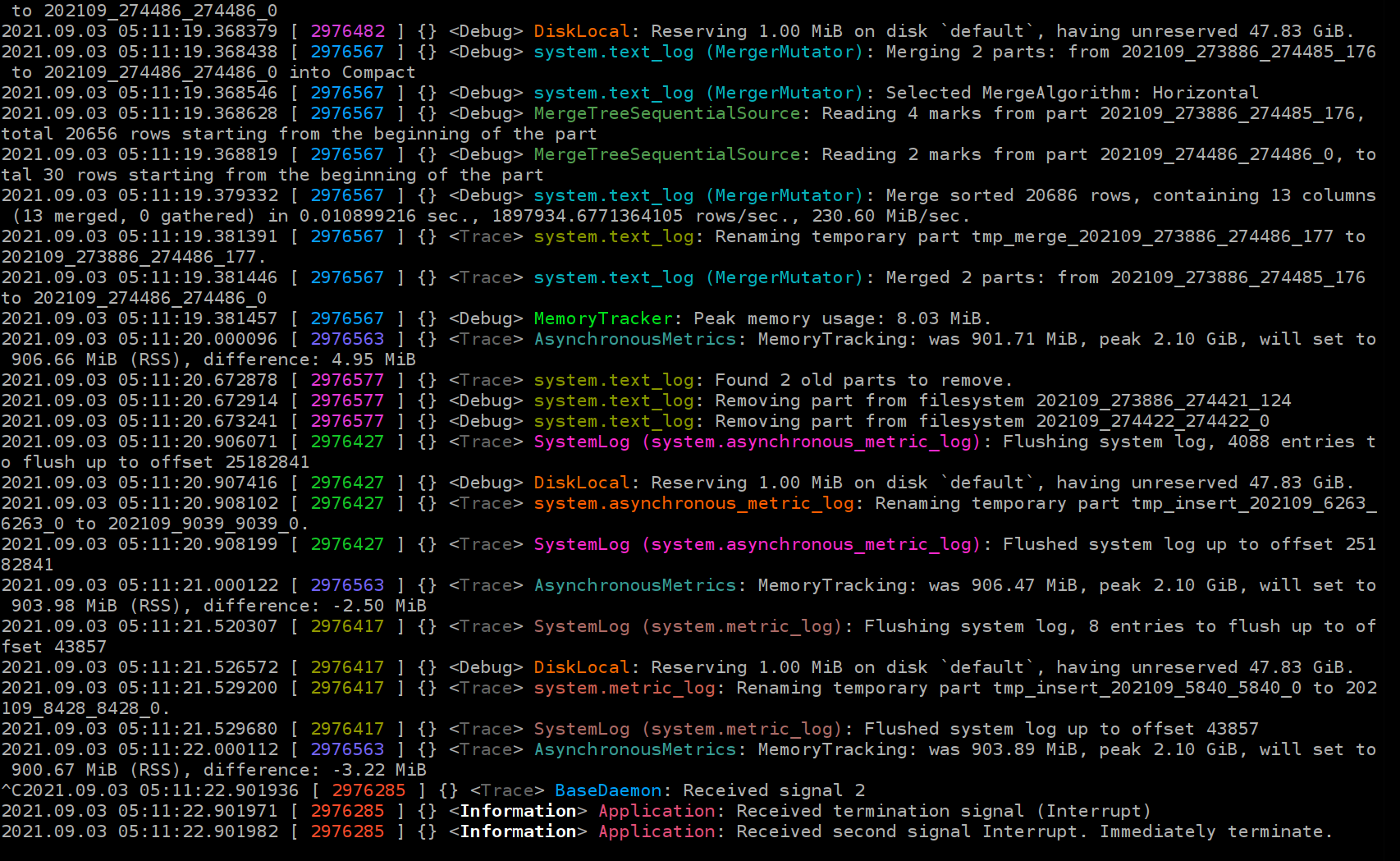

Not Boring Logs

How to Colorize Logs?

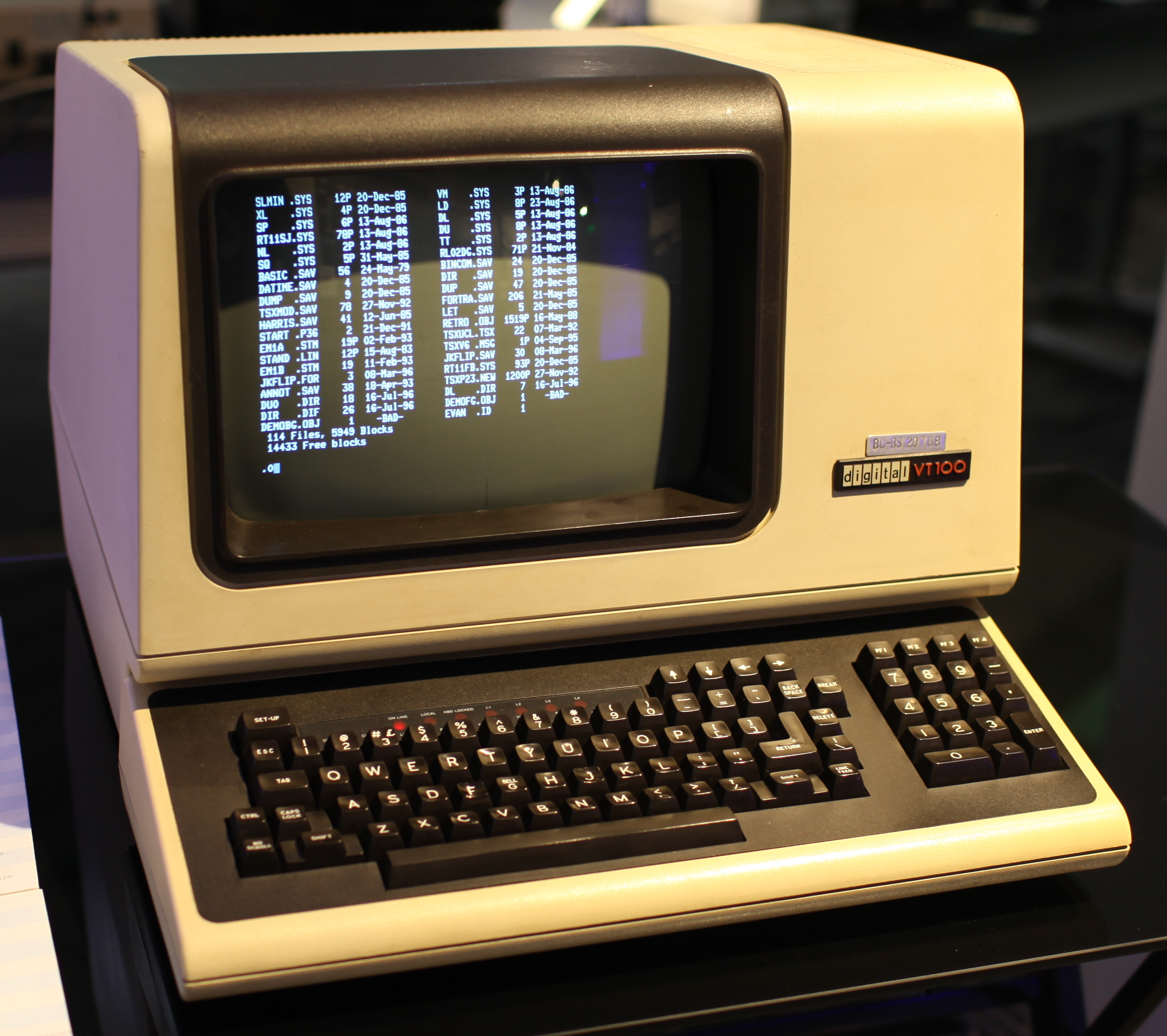

Use terminal control sequences.

ANSI escape sequences:

ESC — \x1b (hex), \033 (octal).

Example: \x1b[31m — red color.

How to Colorize Logs?

echo -e "\033[1;41m Fatal \033[0m" \
        "\033[7;31m Critical \033[0m" \
        "\033[1;31m Error \033[0m" \
        "\033[0;31m Warning \033[0m" \
        "\033[0;33m Notice \033[0m" \
        "\033[1m Information \033[0m" \
        " Debug " \
        "\033[2m Trace \033[0m"

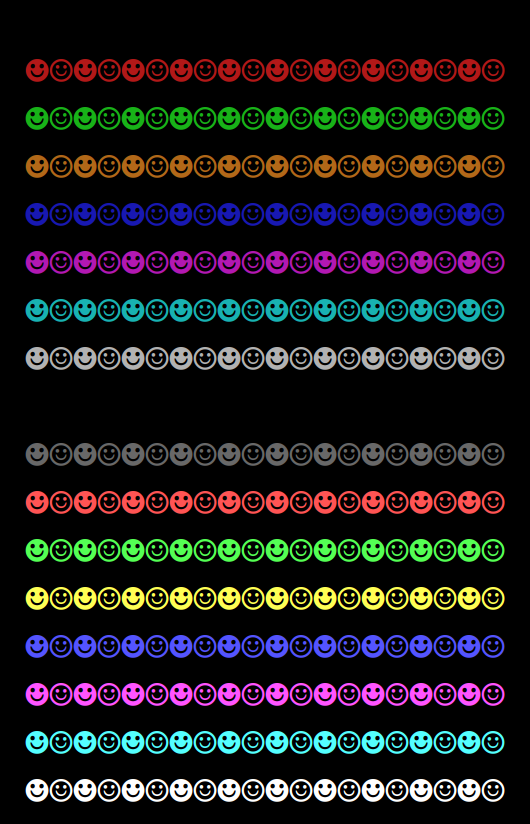

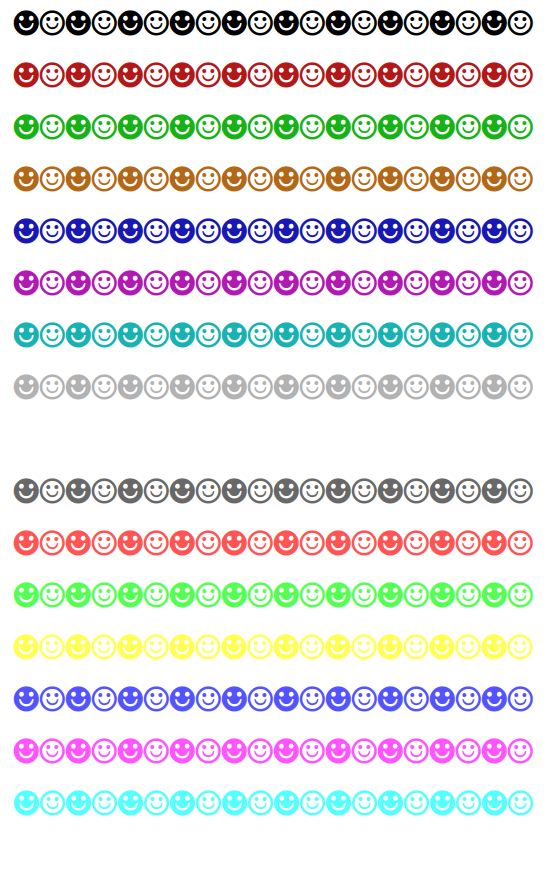

Classic 8/16 Colors

for i in {0..1};
do
  for j in {0..7};
  do
    echo -e "\033[${i};3${j}m ☻☺☻☺☻☺☻☺☻☺☻☺☻☺☻☺☻☺☻☺ \033[0m";
  done;
  echo;
done


Classic 8/16 Colors

— depend on terminal emulator;

— depend on display settings.

How to Colorize Query ID?

— pseudo-randomly: each query gets its own color;

— calculate hash function, map it to color.

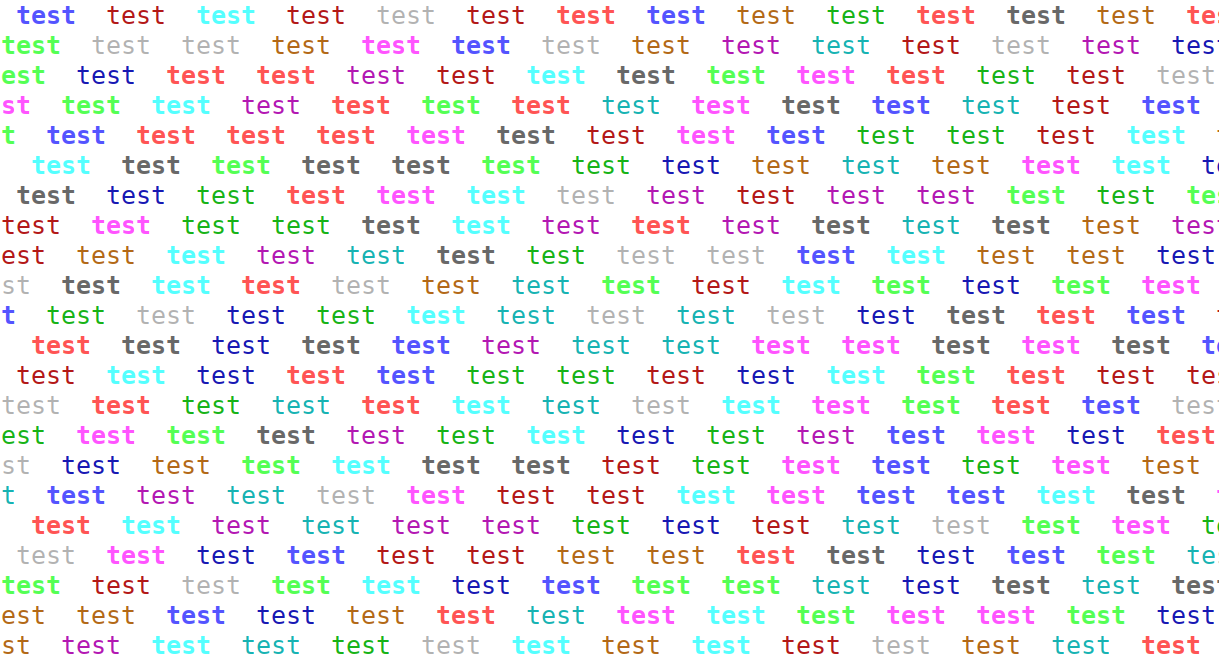

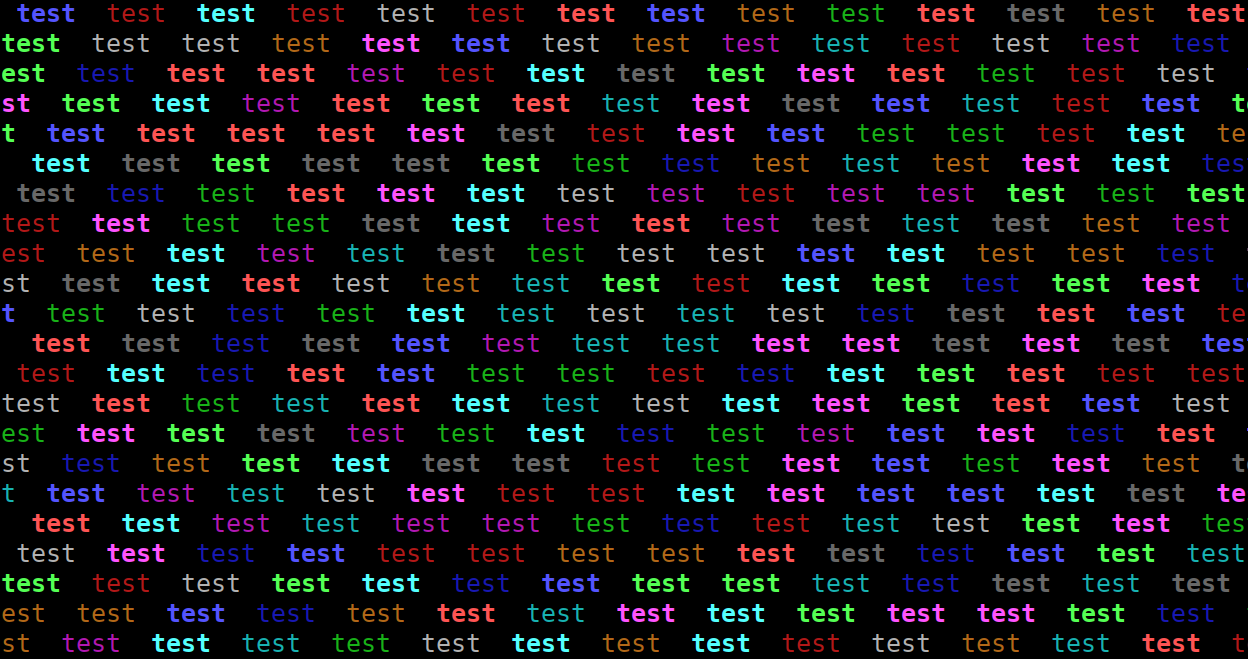

Pseudo-Random Colors

COLORS=("\033[0;31m" "\033[0;32m" "\033[0;33m" "\033[0;34m"
        "\033[0;35m" "\033[0;36m" "\033[0;37m" "\033[1;30m"
        "\033[1;31m" "\033[1;32m" "\033[1;34m" "\033[1;35m"
        "\033[1;36m");
NOCOLOR="\033[0m";

for i in {0..1000};
do
    COLOR=${COLORS[$(($RANDOM % ${#COLORS[*]}))]};
    echo -n -e $COLOR test $NOCOLOR;
done

Pseudo-Random Colors

Pseudo-Random Colors

24 bit «true color»

ESC[ 38;2;⟨r⟩;⟨g⟩;⟨b⟩ m

— not supported by all terminals;

— for example, not supported by screen.

Source: https://commons.wikimedia.org/wiki/File:RGB_color_cube.svg

Task: Generate Pseudo-Random Color

Option 1:

— generate each R, G, B component
  uniformly randomly in range 0..255.

for i in {0..1000}; do echo -e -n
  "\033[38;2;$((RANDOM % 256));$((RANDOM % 256));$((RANDOM % 256))m" \
  "test" \
  "\033[0m";
done

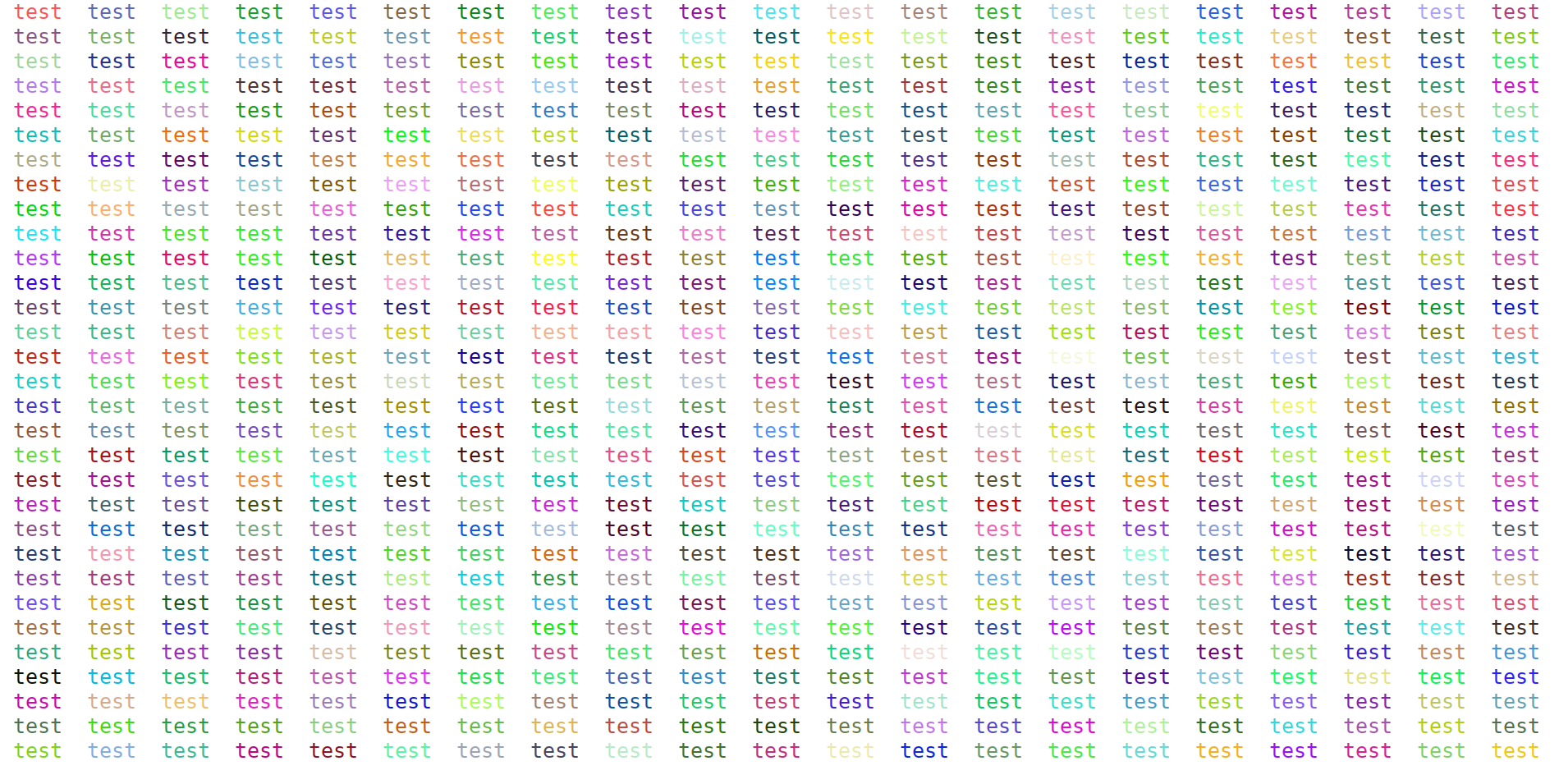

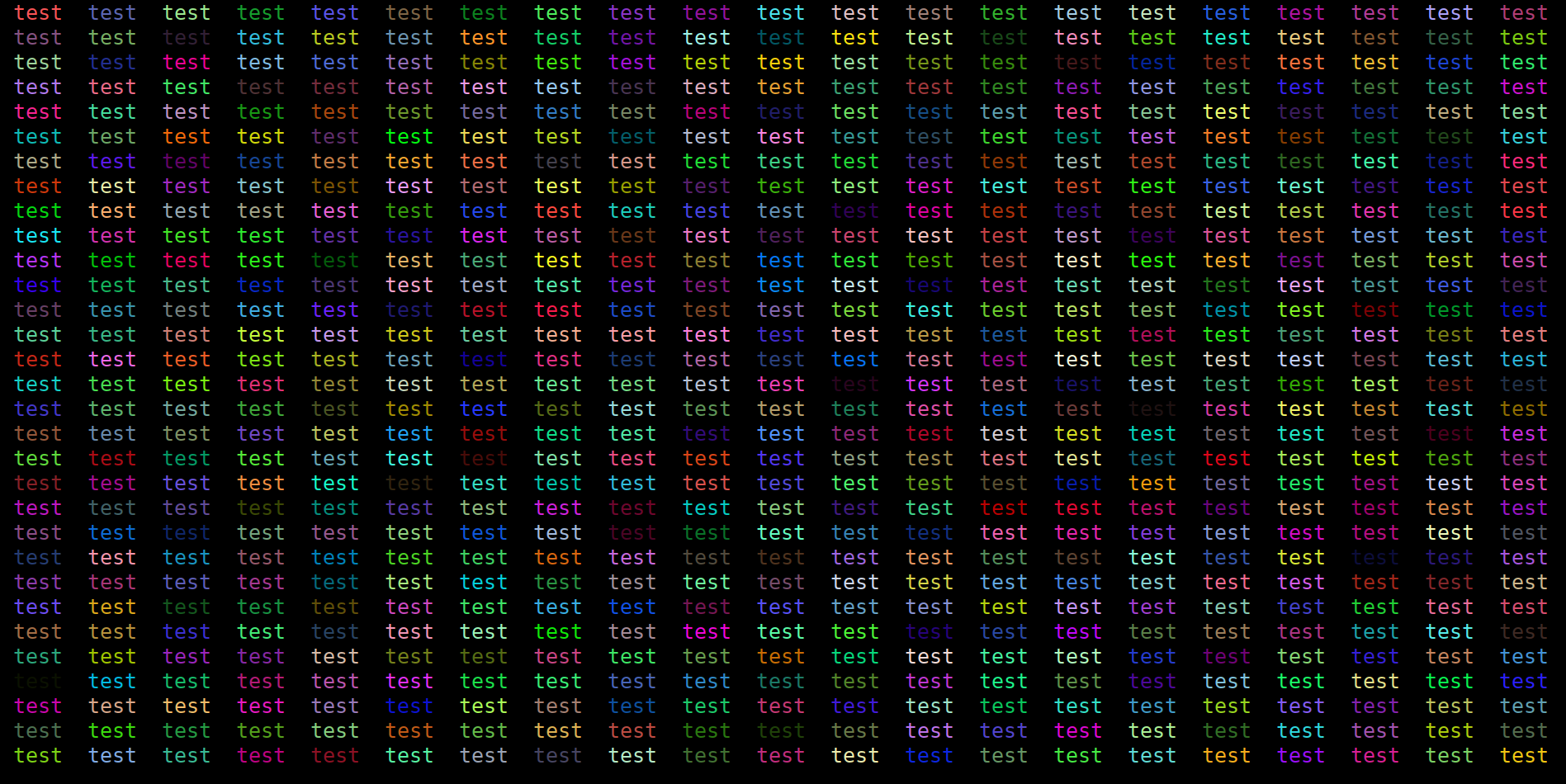

Pseudo-Random Colors

Pseudo-Random Colors

Task: Generate Pseudo-Random Color

Option 1:

— generate each R, G, B component
  uniformly randomly in range 0..255.

Disadvantage:

— colors often blend with background.

Task: Generate Pseudo-Random Color

Random color hue, but approximately
same brightness and saturation.

Obvious solution: switch to HSV color space?

PS. HSV? HSL? HSB? HSI?

Source: https://commons.wikimedia.org/wiki/File:HSL-HSV_hue_and_chroma.svg

Source: https://commons.wikimedia.org/wiki/File:HSV-RGB-comparison.svg

Task: Generate Pseudo-Random Color

for (let i = 0; i < 200; ++i) {
  document.write('<span style="color: hsl('
    + Math.random() * 360
    + ', 100%, 50%)">test<\/span> ');
}

HSV, Random Hue Component

HSV, Random Hue Component

HSV, Random Hue Component

Disadvantages:

— for some reason, few colors;

— for some reason, colors still have different brightness.

Can we do better?

Can We Do Better?

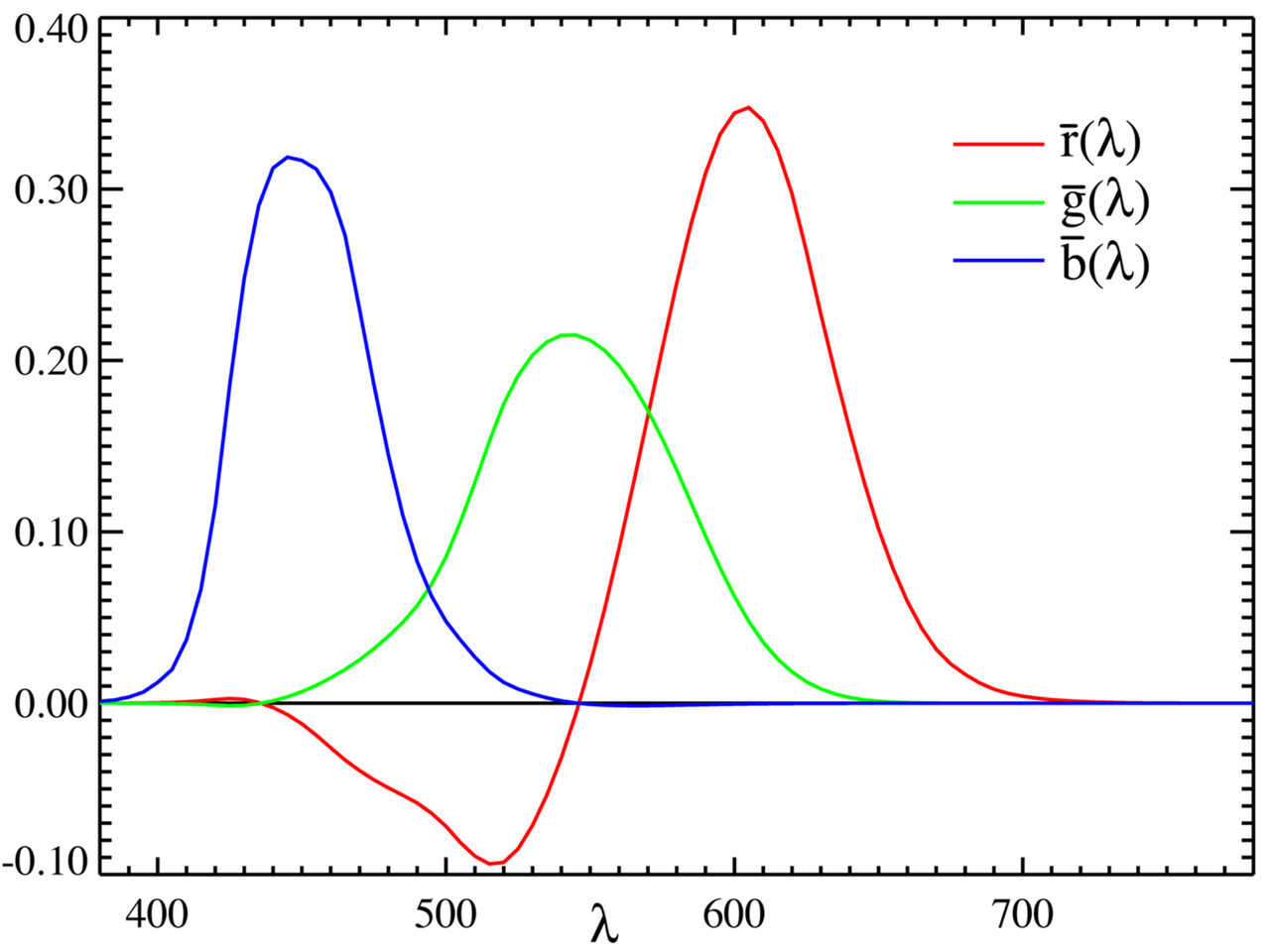

How do people perceive colors?

How to describe the set of all possible colors?

What does color space look like?

How to numerically describe this space?

Which colors can be reproduced?

Can We Do Better?

How do people perceive colors?

— under what lighting to view?

— at what angle to view?

— who exactly is viewing?

— how does observer understand colors?

Can We Do Better?

How to calculate brightness of color specified in RGB*?

1. Brightness = max(r, g, b)

2. Brightness = (r + g + b) / 3

3. Brightness = 0.299 * r + 0.587 * g + 0.114 * b

4. Brightness = 0.2126 * r + 0.7152 * g + 0.0722 * b

In fact, all methods above are incorrect without context.

Which RGB space is meant? Gamma?

Brightness of each component may depend on monitor (however, monitors are calibrated) and observer (but they are not calibrated).

Task: Generate Pseudo-Random Color

Random color hue, but approximately
same brightness and saturation.

Obvious solution: switch to HSV color space?

Doesn't work, because in HSV, V (value) is not brightness, but something else.

And we also didn't use S (saturation).

Let's switch to YCbCr color space!

Task: Generate Pseudo-Random Color

for (let i = 0; i < 200; ++i) {
  let y = 128;
  let cb = Math.random() * 256;
  let cr = Math.random() * 256;

  let r = Math.max(0.0, Math.min(255.0,
    y + 1.402 * (cr - 128)));
  let g = Math.max(0.0, Math.min(255.0,
    y - 0.344136 * (cb - 128) - 0.714136 * (cr - 128)));
  let b = Math.max(0.0, Math.min(255.0,
    y + 1.772 * (cb - 128)));

  document.write('<span style="color: rgb('
    + r + ',' + g + ',' + b + ')">test<\/span> ');
}

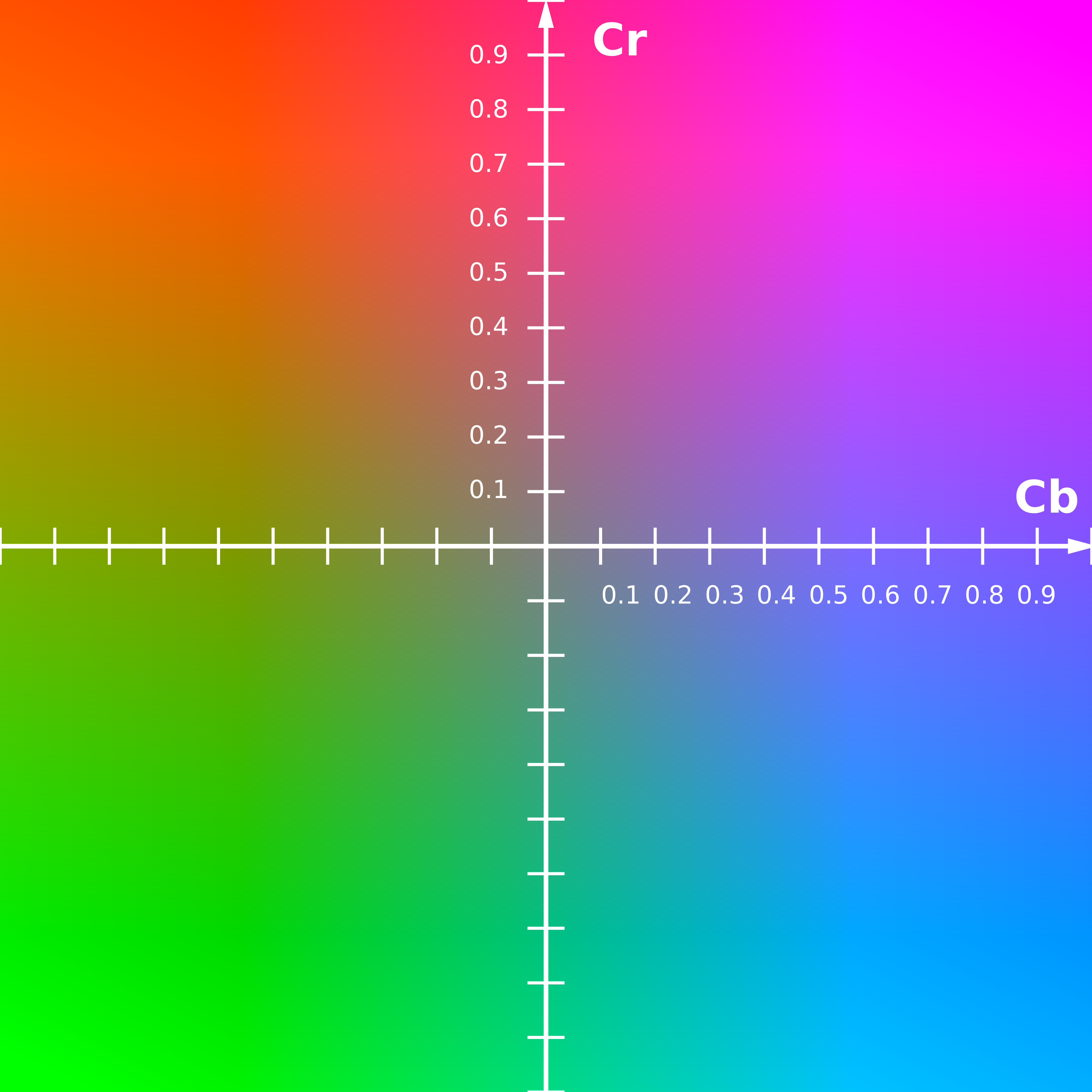

YCbCr, Random Cb, Cr

YCbCr, Random Cb, Cr

Task: Generate Pseudo-Random Color,

Switch to YCbCr color space
fix Y and generate Cb, Cr.

Perfect? But there's a nuance...

In YCbCr, YPbPr, YUV, component Y is also not quite brightness!

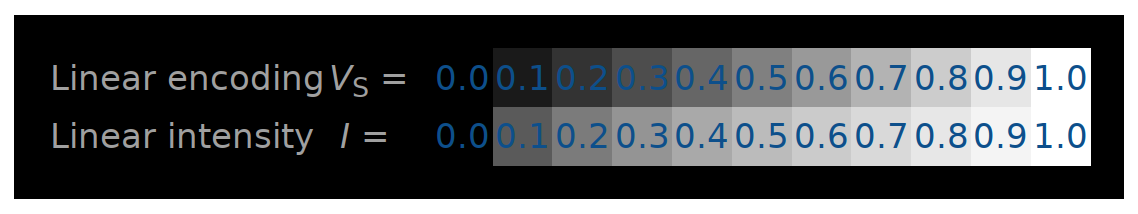

Gamma Correction

In YCbCr, YPbPr, YUV, component Y is «Luma»
— non-linearly encoded brightness using gamma-compression.

sRGB #888888 on typical monitor - 20% of brightness, not 50%.

Bug: images become darker when reduced: http://www.ericbrasseur.org/gamma.html

Task: Generate Pseudo-Random Color,

How to do even better?

L*a*b*, XYZ?

But I got tired.

Conclusions

Want to make something really good?
— you'll have to learn tons of details.

Attention to detail is an important quality of developer.

Note: this talk is very superficial!

Literature: https://www.handprint.com/HP/WCL/color1.html
