How I Optimized One Aggregate Function in ClickHouse

DBMS-X

Works with data only using mmap.

Doesn't support data compression.

Doesn't support indexes and doesn't sort stored data.

Barely supports SQL.

Executes one query faster than ClickHouse?

DBMS-X

Executes one query faster than ClickHouse?

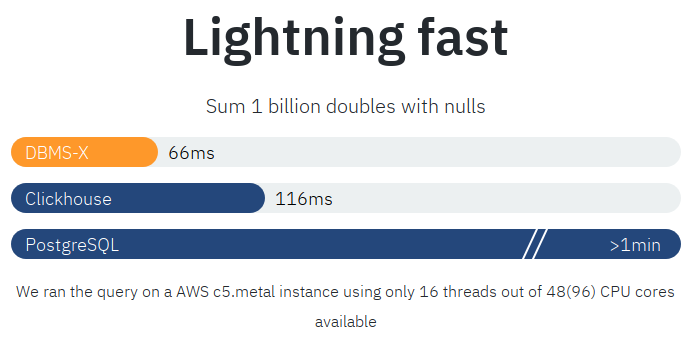

SELECT sum(x) FROM table

x Nullable(Float64)

— summing 1 billion doubles.

ClickHouse: 0.116 sec
DBMS-X:     0.066 sec

AWS c5.metal, 96 vCPU

Sanity Check — Counting Bytes

Data scanning speed in GB/sec.

double — 8 bytes + NULL mask, possibly 1 byte,
total 9 bytes per value in memory.

Need to process 9 GB of data in memory.

ClickHouse: 0.116 sec,  78 GB/sec.
DBMS-X:     0.066 sec, 136 GB/sec.

STREAM benchmark:      160 GB/sec.

160 GB/sec. — maximum
memory scanning speed on this machine.

What's the Fastest Way to Sum Numbers?

1. Use available CPU cores
(divide work across threads).

2. Use vectorized query processing
(only simple loops, no virtual calls inside).

3. Process data in blocks
(proper CPU cache usage).

4. Cache uncompressed data in memory
(eliminate decompression, deserialization, copying).

What's the Fastest Way to Sum Numbers?

Code executed by the database should be the same
as if you manually wrote perfect C++ code.

template <typename T>
T sum(const T * ptr, const T * end)
{
    T res{};
    while (ptr < end)
    {
        res += *ptr;
        ++ptr;
    }
    return res;
}

What's the Fastest Way to Sum Numbers?

while (ptr < end)
{
    res += *ptr;
    ++ptr;
}

But is this perfect C++ code?

— can unroll the loop;
— can vectorize the loop;
— alignment;
— prefetch;

But shouldn't the C++ compiler do this itself?

What's the Fastest Way to Sum Numbers?

$ g++ -O2 main.cpp && ./a.out
Res: 499999999067108992.000, time: 2.561, 3.123 GB/sec.

$ g++ -O3 main.cpp && ./a.out
Res: 499999999067108992.000, time: 1.590, 5.033 GB/sec.

$ g++ -O3 -msse4.2 main.cpp && ./a.out
Res: 499999999067108992.000, time: 1.560, 5.129 GB/sec.

$ g++ -O3 -mavx2 main.cpp && ./a.out
Res: 499999999067108992.000, time: 1.188, 6.733 GB/sec.

$ g++ -O3 -march=native main.cpp && ./a.out
Res: 499999999067108992.000, time: 1.192, 6.710 GB/sec.

What's the Fastest Way to Sum Numbers?

$ clang++ -O2 main.cpp && ./a.out
Res: 499999999067108992.000, time: 0.726, 11.013 GB/sec.

$ clang++ -O3 main.cpp && ./a.out
Res: 499999999067108992.000, time: 0.724, 11.044 GB/sec.

$ clang++ -O3 -msse4.2 main.cpp && ./a.out
Res: 499999999067108992.000, time: 0.733, 10.918 GB/sec.

$ clang++ -O3 -mavx2 main.cpp && ./a.out
Res: 499999999067108992.000, time: 0.728, 10.983 GB/sec.

$ clang++ -O3 -march=native main.cpp && ./a.out
Res: 499999999067108992.000, time: 0.741, 10.792 GB/sec.

What's the Fastest Way to Sum Numbers?

$ g++ -O3 -march=native -S main.cpp && cat main.s

.L11:
    vmovups       (%rax), %xmm1
    vmovupd       (%rax), %ymm3
    addq          $32, %rax
    vaddsd        %xmm1, %xmm0, %xmm0
    vunpckhpd     %xmm1, %xmm1, %xmm1
    vaddsd        %xmm1, %xmm0, %xmm0
    vextractf128  $0x1, %ymm3, %xmm1
    vaddsd        %xmm1, %xmm0, %xmm0
    vunpckhpd     %xmm1, %xmm1, %xmm1
    vaddsd        %xmm1, %xmm0, %xmm0
    cmpq          %rdx, %rax
    jne           .L11

Loop is unrolled but not vectorized.

What's the Fastest Way to Sum Numbers?

$ clang++ -O3 -march=native -S main.cpp && cat main.s

.LBB2_2: # =>This Inner Loop Header: Depth=1
    vaddsd  (%rdi), %xmm0, %xmm0
    addq    $8, %rdi
    cmpq    %rsi, %rdi
    jb      .LBB2_2

Loop is not unrolled, not vectorized... but this is better on my machine.

Why Doesn't the Compiler Vectorize the Loop?

Loop with double, float — not vectorized.

Loop with int — vectorized.

Why Doesn't the Compiler Vectorize the Loop?

Loop with double, float — not vectorized.

Loop with int — vectorized.

— Because it contradicts the C++ standard and IEEE-754.

(a + b) + c != a + (b + c).

Why Doesn't the Compiler Vectorize the Loop?

This can be "fixed", you just need to:

$ clang++ -O3 -march=native -ffast-math main.cpp && ./a.out
Res: 499999999500000000.000, time: 0.362, 22.086 GB/sec.

$ g++ -O3 -march=native -ffast-math main.cpp && ./a.out
Res: 499999999268435456.000, time: 0.392, 20.428 GB/sec.

$ clang++ -O3 -march=native -ffast-math -S main.cpp && cat main.s

.LBB2_4: # =>This Inner Loop Header: Depth=1
    vaddpd  (%rdi,%rcx,8), %ymm0, %ymm0
    vaddpd  32(%rdi,%rcx,8), %ymm1, %ymm1
    vaddpd  64(%rdi,%rcx,8), %ymm2, %ymm2
    vaddpd  96(%rdi,%rcx,8), %ymm3, %ymm3
    addq    $16, %rcx
    cmpq    %rcx, %rdx
    jne     .LBB2_4

But you can't do this :(

Why Doesn't the Compiler Vectorize the Loop?

-ffast-math cannot be used.
Because it breaks calculation precision.

Kahan Summation:

while (ptr < end)
{
    double compensated_value = *ptr - compensation;
    double new_sum = sum + compensated_value;
    compensation = (new_sum - sum) - compensated_value;
    sum = new_sum;
    ++ptr;
}

Why Doesn't the Compiler Vectorize the Loop?

-ffast-math cannot be used.
Because it breaks calculation precision.

Kahan Summation:

while (ptr < end)
{
    double compensated_value = *ptr - compensation;
    double new_sum = sum + compensated_value;
    compensation = (sum + compensated_value - sum) - compensated_value;
    sum = new_sum;
    ++ptr;
}

Why Doesn't the Compiler Vectorize the Loop?

-ffast-math cannot be used.
Because it breaks calculation precision.

Kahan Summation:

while (ptr < end)
{
    double compensated_value = *ptr - compensation;
    double new_sum = sum + compensated_value;
    compensation = 0;
    sum = new_sum;
    ++ptr;
}

Can Manually Unroll the Loop

/// Vectorized version
template <typename Value>
void NO_INLINE addMany(const Value * __restrict ptr, size_t count)
{
    /// Compiler cannot unroll this loop, do it manually.
    /// (at least for floats, most likely due to the lack of -fassociative-math)

    /// Something around the number of SSE registers * the number of elements fit in register.
    constexpr size_t unroll_count = 128 / sizeof(T);
    T partial_sums[unroll_count]{};

    const auto * end = ptr + count;
    const auto * unrolled_end = ptr + (count / unroll_count * unroll_count);

    while (ptr < unrolled_end)
    {
        for (size_t i = 0; i < unroll_count; ++i)
            partial_sums[i] += ptr[i];
        ptr += unroll_count;
    }

    for (size_t i = 0; i < unroll_count; ++i)
        sum += partial_sums[i];

    while (ptr < end)
    {
        sum += *ptr;
        ++ptr;
    }
}

Can Manually Unroll the Loop

#pragma GCC push_options
#pragma GCC optimize ("-ffast-math")

template <typename T>
__attribute__((__noinline__)) T sum(const T * ptr, const T * end)
{
    T res{};
    while (ptr < end)
    {
        res += *ptr;
        ++ptr;
    }
    return res;
}

#pragma GCC pop_options

Only for gcc.

Unrolled the Loop and...

Launched a machine on AWS, reproduced the results.

              median, 1000 queries
ClickHouse:   0.090 sec
DBMS-X:       0.093 sec

ClickHouse is three milliseconds faster!

ClickHouse Doesn't Slow Down.

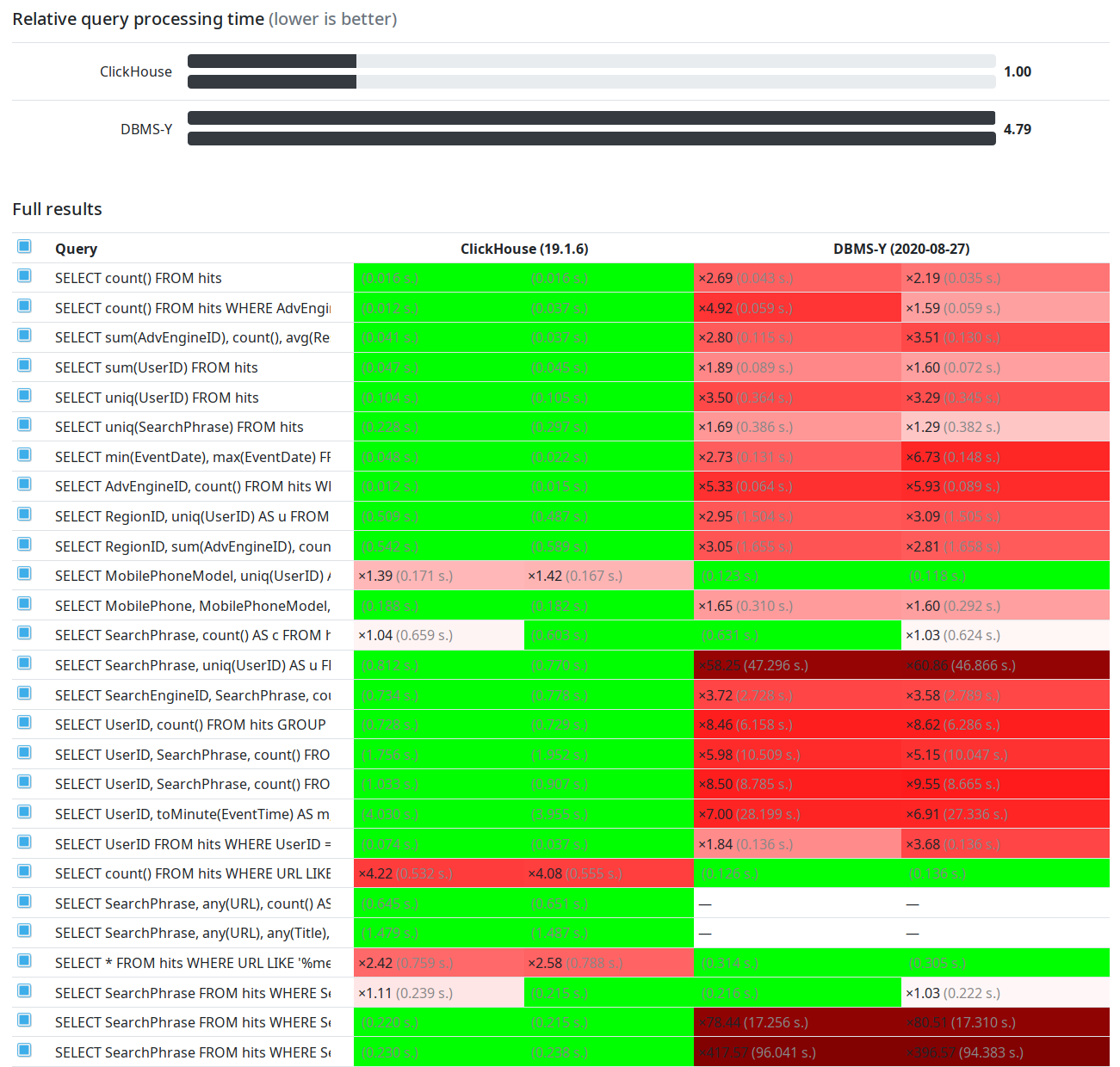

Is ClickHouse the fastest system in all scenarios?

Can anyone become faster than ClickHouse on at least one query?

DBMS-Y

Can use not only CPU but also GPU.

Only works with data that fits in memory.

Doesn't support data compression.

Doesn't support indexes and doesn't sort stored data.

Barely supports GROUP BY on strings.

Executes one query faster than ClickHouse?

DBMS-Y

Executes one query faster than ClickHouse?

SELECT passenger_count, avg(total_amount)
    FROM trips
    GROUP BY passenger_count

passenger_count UInt8, total_amount Float32

— calculating avg by key 0..255.

ClickHouse: 0.827 sec (MergeTree)
ClickHouse: 0.395 sec (MergeTree + uncompressed cache)
ClickHouse: 0.332 sec (Memory)
DBMS-Y:     0.204 sec

Xeon E5-2650v2, 32 logical CPU

What Would be Ideal Code?

For executing the query:

SELECT key, avg(value) FROM table GROUP BY key

Data structure:

Lookup table, 256 cells
— array of sum, count pairs.

Algorithm:

Just loop through input data
and update state in the cell.

What Would be "Ideal" Code?

struct State
{
    float sum = 0;
    size_t count = 0;

    void add(float value)
    {
        sum += value;
        ++count;
    }
};

void process(const vector<uint8_t> & keys,
             const vector<float> & values)
{
    State map[256]{};

    size_t size = keys.size();
    for (size_t i = 0; i < size; ++i)
        map[keys[i]].add(values[i]);

    return map[0].result();
}

What Code is Actually Used?

A lookup table is used.

But there are some details:

1. States are not stored directly in it,
but by pointer, allocated in a separate arena.

2. Each cell stores one more bit, whether it's occupied.

3. Buffer for the lookup table is allocated separately.

4. Lookup table size is stored separately and updated on insert.

Four optimization opportunities!

Four Optimization Opportunities

I tried them all.

They helped, but not enough.

Our code is already "ideal".

But it doesn't work fast enough,
need some magic!

Unroll the Loop

Create multiple state tables.
Aggregate into different ones, then merge together.

State map[256 * UNROLL_COUNT]{};

size_t size = keys.size();
size_t i = 0;

size_t size_unrolled = size / UNROLL_COUNT * UNROLL_COUNT;
for (; i < size_unrolled; i += UNROLL_COUNT)
    for (size_t j = 0; j < UNROLL_COUNT; ++j)
        map[256 * j + keys[i + j]].add(values[i + j]);

for (size_t key = 0; key < 256; ++key)
    for (size_t j = 1; j < UNROLL_COUNT; ++j)
        map[key].merge(map[256 * j + key]);

for (; i < size; ++i)
    map[keys[i]].add(values[i]);

Unroll the Loop Differently

struct State4
{
    float sum[4]{};
    size_t count[4]{};
    ...
};

State4 map[256]{};

size_t size = keys.size() / 4 * 4;
for (size_t i = 0; i < size; i += 4)
{
    map[keys[i]].add<0>(values[i]);
    map[keys[i + 1]].add<1>(values[i]);
    map[keys[i + 2]].add<2>(values[i]);
    map[keys[i + 3]].add<3>(values[i]);
}
...

Buffering and Batching

State map[256]{};

static constexpr size_t BUF_SIZE = 16384 / 256 / sizeof(float); /// Should fit in L1d.

float buffers[256 * BUF_SIZE];
float * ptrs[256];

for (size_t i = 0; i < 256; ++i)
    ptrs[i] = &buffers[i * BUF_SIZE];

size_t size = keys.size();
const auto * key = keys.data();
const auto * key_end = key + size;
const auto * value = values.data();

while (key < key_end)
{
    *ptrs[*key] = *value;

    if (++ptrs[*key] == &buffers[(*key + 1) * BUF_SIZE])  /// Calculation is better than L1d load.
    {
        ptrs[*key] -= BUF_SIZE;
        map[*key].addBatch<BUF_SIZE>(ptrs[*key], BUF_SIZE);
    }

    ++key;
    ++value;
}

for (size_t i = 0; i < 256; ++i)
    map[i].addBatch<4>(&buffers[i * BUF_SIZE], ptrs[i] - &buffers[i * BUF_SIZE]);

Variation on Bucket Sort

State map[256]{};
size_t size = keys.size();

/// Calculate histograms of keys.
using CountType = UInt32;
static constexpr size_t HISTOGRAM_SIZE = 256;
CountType count[HISTOGRAM_SIZE * UNROLL_COUNT]{};
size_t unrolled_size = size / UNROLL_COUNT * UNROLL_COUNT;
for (const UInt8 * elem = keys.data(); elem < keys.data() + unrolled_size; elem += UNROLL_COUNT)
    for (size_t i = 0; i < UNROLL_COUNT; ++i)
        ++count[i * HISTOGRAM_SIZE + elem[i]];
for (const UInt8 * elem = keys.data() + unrolled_size; elem < keys.data() + size; ++elem)
    ++count[*elem];
for (size_t i = 0; i < HISTOGRAM_SIZE; ++i)
    for (size_t j = 1; j < UNROLL_COUNT; ++j)
        count[i] += count[j * HISTOGRAM_SIZE + i];

/// Row indices in a batch for each key.
PODArray<UInt32> indices(size);
UInt32 * positions[HISTOGRAM_SIZE];
positions[0] = indices.data();
for (size_t i = 1; i < HISTOGRAM_SIZE; ++i)
    positions[i] = positions[i - 1] + count[i - 1];
for (size_t i = 0; i < size; ++i)
    *positions[keys[i]]++ = i;

/// Update states.
UInt32 * idx = indices.data();
for (size_t i = 0; i < HISTOGRAM_SIZE; ++i)
    for (; idx < positions[i]; ++idx)
        map[i].add(values[*idx]);

By How Much Should We Unroll?

Testing on different servers gives different results.

On AMD EPYC, Ryzen processors there's larger cache
— can unroll by 8x.

On Intel processors this causes terrible slowdowns
— and maximum is 4x.

How Much Speedup Did We Achieve?

On model code:

Baseline:   360 million rows/sec., 1804 MiB/sec.
Optimized: 1339 million rows/sec., 6695 MiB/sec. x3.72

Real query in ClickHouse:

ClickHouse (old): 0.332 sec.
DBMS-Y:           0.204 sec
ClickHouse (new): 0.197 sec. x1.69

Conclusions

If some system on some degenerate query
works slightly faster than ClickHouse
— it means I haven't optimized the code yet,
and I'll do it tomorrow.

ClickHouse's internal architecture allows
optimizing for the task and hardware.

How I Optimized OneAggregate Function in ClickHouse

ClickHouse Doesn't Slow Down.

ClickHouse Doesn't Slow Down.

ClickHouse Doesn't Slow Down.

DBMS-X

DBMS-X

Sanity Check — Counting Bytes

What's the Fastest Way to Sum Numbers?

What's the Fastest Way to Sum Numbers?

What's the Fastest Way to Sum Numbers?

What's the Fastest Way to Sum Numbers?

What's the Fastest Way to Sum Numbers?

What's the Fastest Way to Sum Numbers?

What's the Fastest Way to Sum Numbers?

Why Doesn't the Compiler Vectorize the Loop?

Why Doesn't the Compiler Vectorize the Loop?

Why Doesn't the Compiler Vectorize the Loop?

Why Doesn't the Compiler Vectorize the Loop?

Why Doesn't the Compiler Vectorize the Loop?

Why Doesn't the Compiler Vectorize the Loop?

Can Manually Unroll the Loop

Can Manually Unroll the Loop

Unrolled the Loop and...

ClickHouse Doesn't Slow Down.

DBMS-Y

DBMS-Y

What Would be Ideal Code?

What Would be "Ideal" Code?

What Code is Actually Used?

Four Optimization Opportunities

Unroll the Loop

Unroll the Loop Differently

Buffering and Batching

Variation on Bucket Sort

By How Much Should We Unroll?

How Much Speedup Did We Achieve?

Conclusions

Bonus

.

How I Optimized One
Aggregate Function in ClickHouse
