Query Performance Analysis
in ClickHouse

About Me

Alexey, ClickHouse developer.

Query Performance Analysis

Is the query running fast enough?
If not, why not?
Can the query be executed faster?

Trivial Facts

... and common truths.

What Resources Are Used in the System?

— processor;

— memory;

— disk;

— network.

... and the program might also be blocked on sleep.

What Resources Are Used in the System?

Resource utilization is an aggregated value,
which usually doesn't give the full picture.

If a resource is utilized at «100%»
— it doesn't mean we can't do better.

If a resource is utilized at less than 100%
— it doesn't mean we can do better.

Example 1, CPU

Looking at CPU utilization in top, htop, etc.

If they show that a CPU core is loaded at 100%, the processor is executing instructions, but:

— the processor can execute different numbers of instructions per cycle;

— the processor can wait for data loading from memory or cache,

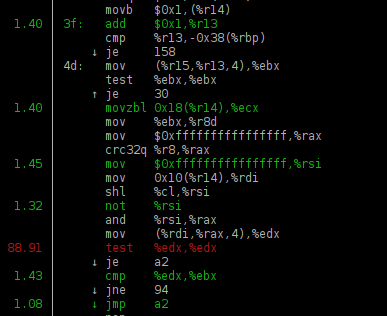

but this time is also counted as CPU utilization (perf record);

— the processor can run at reduced frequency (turbostat, dmesg);

Example 1, CPU

If they show that CPU is loaded at 50% in total:

— perhaps more doesn't make sense,
if Hyper-Threading doesn't give much benefit on your code;

— perhaps you're looking at an averaged value, while
at certain moments in time, the processor is fully loaded.

What is the CPU busy with? What is the bottleneck?

Example 2, Disks

... or SSD.

The program spends all time reading from disks, but iostat shows utilization less than 100%:
— you have a RAID array, but you're reading with insufficient buffer size
     with O_DIRECT or without readahead — disks are used
     not all in parallel;
— you have RAID-10, but you created it with near, not far layout in mdadm;
— you have RAID-5/6, but incorrect stripe cache size is set;
— you're doing random reads with insufficient degree
     of parallelism (for SSD use only AIO (io_submit)
     for random reads).

Also: always compress data stored on disk.

Bonus

If you're not sure whether to compress data stored on disk,
see the HighLoad++ Siberia 2018 talk «How to Speed Up LZ4 Decompression»:

https://youtu.be/V2CqQBICt7M

Example 3, Memory

Linux shows that the system has almost no free memory:
— don't look at free memory: https://www.linuxatemyram.com/.

Top shows that the process used more memory than available:
— don't look at VIRT memory for the process (large address space size is normal, look at RSS).

Graphs show that the process doesn't release memory:
— modern allocators (almost) don't return memory to the system directly.

Also: don't enable swap;

Example 4, Network

The program spends all time transferring data over the network,
but the network is not utilized:

— perhaps you're creating new TCP connections
for each data transfer;

— perhaps you're using one TCP connection
for transferring files on a network with significant packet loss;

— perhaps you're sending data in small chunks
with TCP_NODELAY.

Also: always compress data transmitted over the network.

Basic Toolkit

top, htop: CPU, memory by processes;

dstat: IO, network, ...;

iostat: IO by devices;

iotop: IO by processes;

iftop: network by hosts;

perf top: CPU by functions in processes;

Example: top by threads

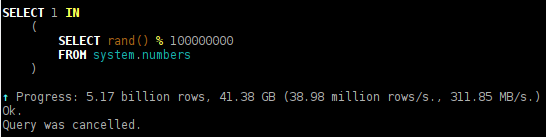

Example: clickhouse-benchmark + perf top

Resource Consumption Inside ClickHouse

What's Happening Right Now?

SHOW PROCESSLIST

Or SELECT * FROM system.processes

SELECT * FROM system.merges

«clickhouse top»:
watch -n1 'clickhouse-client --query="SHOW PROCESSLIST"'

What Happened Before?

system.query_log
— enabled globally, per user, per session, or per query;
— setting log_queries = 1;
— queries are logged twice: at the beginning and end of execution.

system.part_log
— enabled globally in config.xml;
— all operations with MergeTree data are logged.

Writing to system tables is asynchronous.
(once every 7 seconds). SYSTEM FLUSH LOGS for forced flush.

What Can You Do with query_log?

— export query stream
and load using clickhouse-benchmark:

clickhouse-client --query=" SELECT query FROM system.query_log WHERE type = 2 AND event_date = today() " > queries.tsv

clickhouse-benchmark < queries.tsv

— find the first query after which everything went bad;

— look at resource breakdown by users.

Query Tracing

SET send_logs_level = 'trace'

— logs are sent from all servers
participating in query processing
(distributed tracing);

Resource Counters

Global:
— system.events;
— system.metrics;
— system.asynchronous_metrics.

Per query:
— system.processes;
— system.query_log.

Per query execution thread:
— system.query_thread_log.

Resource Counters

User-space:
— FileOpen;
— NetworkReceiveElapsedMicroseconds;
— ReadBufferFromFileDescriptorReadBytes...

Kernel-space:
— OSReadChars;
— OSReadBytes;
— OSIOWaitMicroseconds;
— OSCPUWaitMicroseconds;
— UserTimeMicroseconds;
— SoftPageFaults...

Per-Query Resource Counters

Metric	First Run	Second Run
Total time	6.7 sec	1.3 sec
...FileDescriptorReadBytes	2.56 GiB	2.56 GiB
ReadChars	2.56 GiB	2.56 GiB
ReadBytes	3.23 GiB	3.13 MiB
IOWait	87.3 sec	0.023 sec
CPUWait	0.027 sec	0.045 sec
UserTime	9.9 sec	13.4 sec
SystemTime	2.4 sec	2.2 sec
