ClickHouse: My Favorite Features of H1 2023

My Favorite Features of 2023

Photo by Ansgar Koreng, CC BY 3.0.

— My favorite features

— Winter/Spring 2023

Parameterized Views

CREATE VIEW wiki AS SELECT toStartOfMonth(time), sum(hits) AS h, bar(h, 0, max(h) OVER (), 100) FROM wikistat WHERE path = {page:String} GROUP BY 1 ORDER BY 1; SELECT * FROM wiki(page = 'ClickHouse');

Developer: Smita Kulkarni.

Parameterized Views

SELECT * FROM wiki(page = 'ClickHouse'); SELECT * FROM default.wiki(page = 'ClickHouse');

Requires access to the view and all the underlying tables.

Up next:
— Encapsulation of access control;
— Publishing views as API.

Developer: Smita Kulkarni.

Data Lakes

Now we support all three indistinguishable technologies:

Apache Hudi, Apache Delta Lake, Apache Iceberg

SELECT * FROM iceberg( 'https://bucket.s3.amazonaws.com/test_table', s3 credentials...) CREATE TABLE t ENGINE = Iceberg( 'https://bucket.s3.amazonaws.com/test_table', s3 credentials...) SELECT * FROM iceberg(named_conf 'https://bucket.s3.amazonaws.com/test_table')

Developer: Kseniia Sumarokova, Daniil Rubin, ucasFL.

Data Lakes

Now ClickHouse supports Apache Hudi, Delta Lake, Apache Iceberg
for SELECT queries.

— ClickHouse integrates with everything!
— s3, hdfs, https, mysql, postgres, sqlite, mongodb, jdbc, odbc...
— query the data without loading!

Advantages:
— these formats are somewhat resembling MergeTree
  allowing incremental data insertion,
  approaching to ClickHouse data formats;

Disadvantages:
— a band-aid solution to organize the data;

Data Lakes

Can we publish a MergeTree table
into a data lake?

— Yes!

Dynamic Disks

Was:

storage_configuration: disks: web: type: web endpoint: 'https://clickhouse-public-datasets.s3.amazonaws.com/web/' policies: web: volumes: main: disk: web

ATTACH TABLE hits ... ENGINE = MergeTree ORDER BY CounterID SETTINGS storage_policy = 'web'

Dynamic Disks

Slightly better:

storage_configuration: disks: web: type: web endpoint: 'https://clickhouse-public-datasets.s3.amazonaws.com/web/'

ATTACH TABLE hits ... ENGINE = MergeTree ORDER BY CounterID SETTINGS disk = 'web'

No need for "storage policy" in simple cases.

Dynamic Disks

Much better:

ATTACH TABLE hits ... ENGINE = MergeTree ORDER BY CounterID SETTINGS disk = disk( type = 'web', endpoint = 'https://clickhouse-public-datasets.s3.amazonaws.com/web/')

100% dynamic configuration, no need to touch the configuration files.

Developers: Ksenia Sumarokova.

Nested Dynamic Disks

ATTACH TABLE uk_price_paid UUID 'cf712b4f-2ca8-435c-ac23-c4393efe52f7' ( price UInt32, date Date, postcode1 LowCardinality(String), postcode2 LowCardinality(String), type Enum8('other' = 0, 'terraced' = 1, 'semi-detached' = 2, 'detached' = 3, 'flat' = 4), is_new UInt8, duration Enum8('unknown' = 0, 'freehold' = 1, 'leasehold' = 2), addr1 String, ... ) ENGINE = MergeTree ORDER BY (postcode1, postcode2, addr1, addr2) SETTINGS disk = disk( type = cache, path = '/home/milovidov/.cache/clickhouse-local/', max_size = '10G', disk = disk( type = web, endpoint = 'https://raw.githubusercontent.com/ClickHouse/web-tables-demo/main/web/'));

Developer: Kseniia Sumarokova.

Parallel Replicas

Without parallel replicas:

SELECT count() FROM github_events WHERE body ILIKE '%ClickHouse%'; Elapsed: 458.332 sec. 1.18 TB (2.58 GB/s.)

With 10 parallel replicas:

SET allow_experimental_parallel_reading_from_replicas = 1, max_parallel_replicas = 10; SELECT count() FROM github_events WHERE body ILIKE '%ClickHouse%'; Elapsed: 40.284 sec. 1.18 TB (29.34 GB/s.)

With 100 parallel replicas:

Elapsed: 8.790 sec. 1.18 TB (134.44 GB/s.)

Developer: Nikita Mikhailov.

Parallel Replicas With Dynamic Shards

SET max_parallel_replicas = 100, parallel_replicas_custom_key = 'UserID', parallel_replicas_custom_key_filter_type = 'default'; -- parallel_replicas_custom_key_filter_type = 'range'

Represents every replica as a shard for distributed queries
by pre-filtering data by remainder of division or a range.

Useful for large JOIN or GROUP BY with
the distributed_group_by_no_merge setting.

Developer: Antonio Andelic.

Parallel Replicas, Bonus

SELECT ... FROM s3( 'https://bucket.s3.amazonaws.com/data*.parquet.zst')

SELECT ... FROM s3Cluster( cluster, 'https://bucket.s3.amazonaws.com/data*.parquet.zst')

Since version 23.5:

SELECT ... FROM url( 'https://bucket.s3.amazonaws.com/data{01..99}.parquet.zst')

SELECT ... FROM urlCluster( cluster, 'https://bucket.s3.amazonaws.com/data{01..99}.parquet.zst')

Faster Parquet Reading

From S3 and URLs.

100 times faster.

Developer: Michael Kolupaev.

Autodetect Headers Of TSV/CSV

No need to choose between CSV, CSVWithNames, CSVWithNamesAndTypes
for data import.

Was: SELECT * FROM file('data.csv', CSVWithNames); Now: SELECT * FROM file('data.csv');

Just write CSV, and it will find the headers if there are any.

Everything detected automatically whenever possible!

Developer: Pavel Kruglov.

Regexp Tree Dictionaries

CREATE DICTIONARY user_agent ( regexp String, name String, version UInt16 ) PRIMARY KEY(regexp) SOURCE(YAMLRegExpTree(PATH '/.../regexp_tree.yaml')) LAYOUT(regexp_tree)

Developers: Vage Ogannisian, Han Fei.

Regexp Tree Dictionaries

- regexp: 'Linux/(\d+[\.\d]*).+tlinux' name: 'TencentOS' version: '\1' - regexp: '\d+/tclwebkit(?:\d+[\.\d]*)' name: 'Andriod' versions: - regexp: '33/tclwebkit' version: 13 - regexp: '3[12]/tclwebkit' version: 12 - regexp: '30/tclwebkit' version: 11 - regexp: '29/tclwebkit' version: 10

Regexp Tree Dictionaries

SELECT dictGet('user_agent', ('name', 'version'), UserAgent);

— Traverses the tree, and determines the values of the attributes.

— The tree can be arbitrarily deep,
  and each nested level can override the values.

Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/109.0.0.0 Safari/537.36

— All regular expressions are checked in a single pass for performance!

— Can be loaded from YAML file or from a table in any source.

Query Result Cache

$ cat /etc/clickhouse-server/config.d/query_cache.yaml query_result_cache: size: 1073741824 max_entries: 1024 max_entry_size: 104857600 max_entry_records: 30000000

SET use_query_cache = 1;

Developers: Mikhail Stetsyuk, Robert Schulze.

Query Result Cache

Allows to control on per-query basis:

— min query runs to cache the result;
— min query runtime to cache the result;
— max result size to put into cache;
— max staleness to use the cached entry;
— passive usage of the existing entries in cache;
— caching of queries with non-deterministic functions;
— sharing the cache between users;

Developers: Mikhail Stetsyuk, Robert Schulze.

Next steps: compressed cache; on disk cache; cache of intermediate data.

SQL Compatibility

ClickHouse should support everything you expect.

Analyzer

WITH example AS ( SELECT '2021-01-01' AS date, 1 AS node, 1 AS user) SELECT extra_data FROM ( SELECT join1.* FROM example LEFT JOIN ( SELECT '2021-01-01' AS date, 1 AS extra_data) AS join1 ON example.date = join1.date LEFT JOIN ( SELECT '2021-01-01' AS date) AS join2 ON example.date = join2.date)

Was: Missing columns: 'extra_data' while processing query...

Now: SET allow_experimental_analyzer = 1;
- works perfectly.

Analyzer

SELECT * FROM (SELECT SUM(COALESCE(SEQ_VONR_MO_CALL_CONN_FAIL_TIMES_C, 0)) AS VONR_MO_CALL_CONN_FAIL_TIMES, MT.`102520001` AS `102520001`, MT.`181361814368` AS `181361814368`, MT.`102520102` AS `102520102`, MT.`102520101` AS `102520101`, MT.`102520104` AS `102520104`, MT.`183111861371` AS `183111861371`, MT.`102530101` AS `102530101`, MT.`102540101` AS `102540101`, MT.`102520103` AS `102520103`, MT.`102510101` AS `102510101` FROM ( SELECT COALESCE(SUM(VONR_MO_CALL_CONN_FAIL_TIMES), 0) AS SEQ_VONR_MO_CALL_CONN_FAIL_TIMES_C, COM_FAIL_CAUSE AS `102520001`, NULL AS `102520102`, COM_FAIL_CAUSE AS `102510101`, NULL AS `102520101`, D183111570684_H101.`183111861371` AS `183111861371`, NULL AS `102520104`, NULL AS `102520103`, H_COMPREHENSIVE_FAILURE_CAUSE.`102540101` AS `102540101`, H_COMPREHENSIVE_FAILURE_CAUSE.`102530101` AS `102530101`, concat('14', '-', '255', '-', '255', '-', SIP_RELEASE_CODE) AS `181361814368` FROM TEST_DATABASE.SDR_TEST LEFT JOIN ( SELECT concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID) AS `102510101`, UNIFIED_CAUSE_ID AS `183111861371`, concat(FAILCAUSE, '(', PD, ')') AS NAME_102510101 FROM TEST_DATABASE.DIM_TEST GROUP BY concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID), UNIFIED_CAUSE_ID, concat(FAILCAUSE, '(', PD, ')') ) AS D183111570684_H101 ON COM_FAIL_CAUSE = D183111570684_H101.`102510101` LEFT JOIN ( SELECT concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID) AS `102520001`, SCENE_ID AS `102540101`, CLASS_ID AS `102530101`, SCENE_NAME AS NAME_102540101 FROM TEST_DATABASE.DIM_TEST GROUP BY concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID), SCENE_ID, CLASS_ID, SCENE_NAME ) AS H_COMPREHENSIVE_FAILURE_CAUSE ON COM_FAIL_CAUSE = H_COMPREHENSIVE_FAILURE_CAUSE.`102520001` LEFT JOIN ( SELECT concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID) AS `181361814368`, CAUSE AS NAME_181361814368 FROM TEST_DATABASE.DIM_TEST GROUP BY concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID), CAUSE ) AS DIM_FAILCAUSE_ALL_181361814368 ON concat('14', '-', '255', '-', '255', '-', SIP_RELEASE_CODE) = DIM_FAILCAUSE_ALL_181361814368.`181361814368` WHERE (H_COMPREHENSIVE_FAILURE_CAUSE.NAME_102540101 IS NOT NULL) AND (D183111570684_H101.NAME_102510101 IS NOT NULL) AND (DIM_FAILCAUSE_ALL_181361814368.NAME_181361814368 IS NOT NULL) GROUP BY `102520001`, `102520102`, `102510101`, `102520101`, D183111570684_H101.`183111861371`, `102520104`, `102520103`, H_COMPREHENSIVE_FAILURE_CAUSE.`102540101`, H_COMPREHENSIVE_FAILURE_CAUSE.`102530101`, `181361814368` ) AS MT GROUP BY MT.`102520001`, MT.`181361814368`, MT.`102520102`, MT.`102520101`, MT.`102520104`, MT.`183111861371`, MT.`102530101`, MT.`102540101`, MT.`102520103`, MT.`102510101` ) AS ST WHERE ST.VONR_MO_CALL_CONN_FAIL_TIMES > 0 ORDER BY VONR_MO_CALL_CONN_FAIL_TIMES DESC LIMIT 0, 5000

Boring Features

Password Complexity Rules

$ cat /etc/clickhouse-server/config.d/rules.yaml password_complexity: - rule: pattern: '.{12}' message: 'be at least 12 characters long' - rule: pattern: '\p{N}' message: contain at least 1 numeric character - rule: pattern: '\p{Lu}' message: contain at least 1 uppercase character - rule: pattern: '[^\p{L}\p{N}]' message: contain at least 1 special character

Developer: Nikolay Degterinsky.

Password Complexity Rules

:) CREATE USER vasyan IDENTIFIED WITH sha256_password BY 'qwerty123' DB::Exception: Invalid password. The password should: be at least 12 characters long, contain at least 1 uppercase character, contain at least 1 special character.

Developer: Nikolay Degterinsky.

Note: if clickhouse-client is being used,
the password will be checked and hashed on client side.

The server will never receive the plaintext password.

Credentials Cleansing

CREATE TABLE test AS mysql( 'monty:3306', maria, table, 'videnius', 'qwerty123'); 2022.12.15 07:51:10.997810 [ 2282939 ] {ea24d544-3e40-4f2a-9f0e-2e3a35fc63c8} <Debug> executeQuery: (from [::ffff:127.0.0.1]:47320) CREATE TABLE test AS mysql('monty:3306', maria, table, 'videnius', '[HIDDEN]') (stage: Complete) :) SHOW CREATE TABLE test ... AS mysql('monty:3306', maria, table, 'videnius', '[HIDDEN]'); :) SELECT query FROM system.query_log WHERE query LIKE 'CREATE TABLE test%' CREATE TABLE test AS mysql( 'monty:3306', maria, table, 'videnius', '[HIDDEN]')

Developer: Vitaly Baranov.

More Boring Features

— bcrypt for password hashing;

— allow configuring the default password hashing;

CREATE USER test IDENTIFIED BY 'my_password'; config.d/password_type.yaml: default_password_type: sha256_password

Not So Boring Features

Trailing Comma Before FROM

SELECT UserID, SearchPhrase, RegionID, FROM test.hits

Was: Expected one of: token, Dot, OR, AND, BETWEEN, NOT BETWEEN, LIKE, ILIKE, NOT LIKE, NOT ILIKE, IN, NOT IN, GLOBAL IN, GLOBAL NOT IN, MOD, DIV, IS NULL, IS NOT NULL, alias, AS, Comma, FROM, PREWHERE, WHERE, GROUP BY, WITH, HAVING, WINDOW, ORDER BY, LIMIT, OFFSET, SETTINGS, UNION, EXCEPT, INTERSECT, INTO OUTFILE, FORMAT, end of query

Now: Just works!

Developer: Nikolai Degterinskiy.

Settings With - In Command Line

clickhouse-client --max_threads 1 --query "SELECT 1"

clickhouse-client --max-threads 1 --query "SELECT 1"

Was: Code: 552. DB::Exception: Unrecognized option '--max-threads'.

Now: Just works!

Bonus:

clickhouse-client —max-threads 1 --query "SELECT 1"

— It also works 👀

Developer: Alexey Golub.

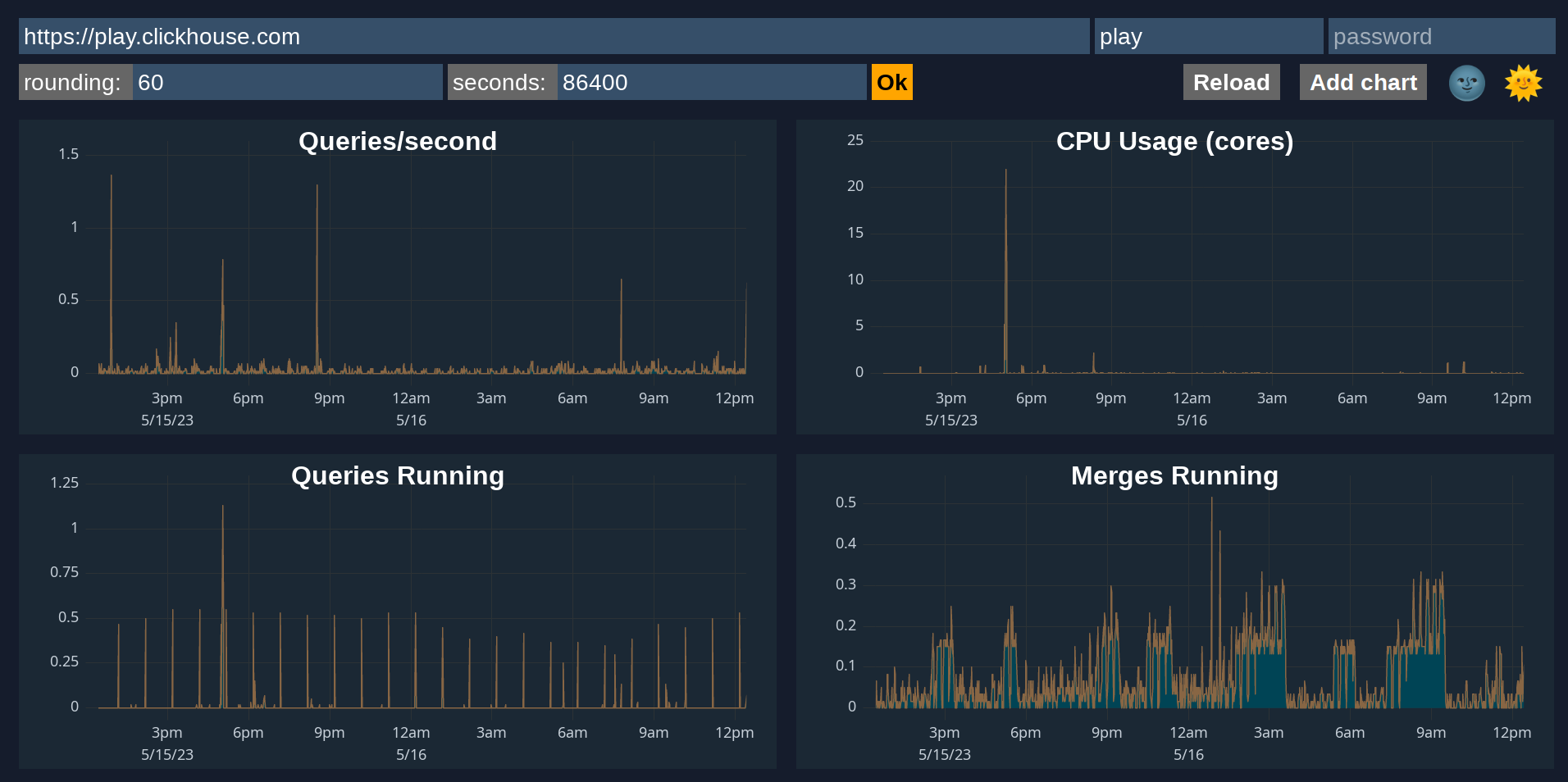

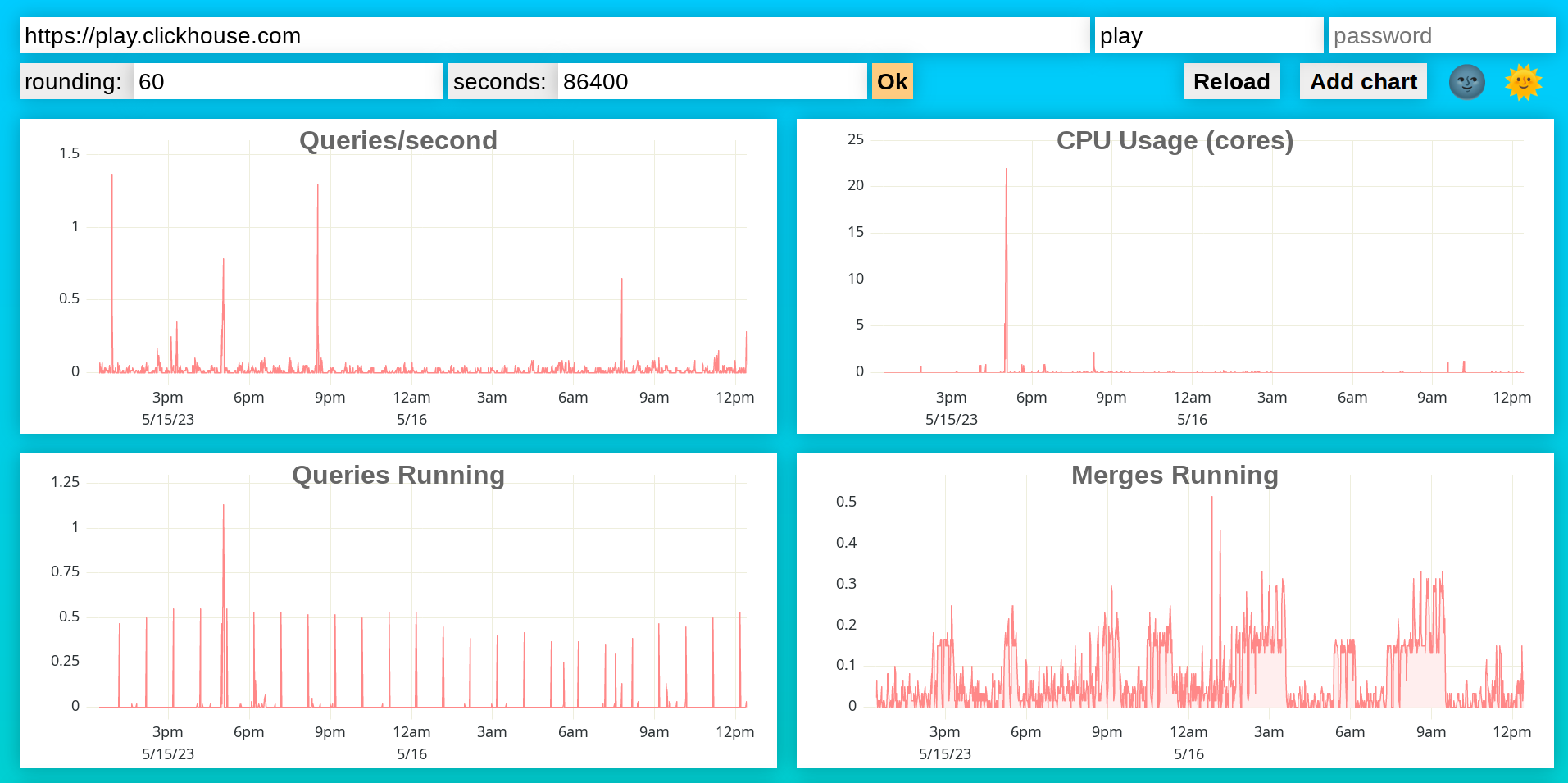

Embedded Dashboards

Embedded Dashboards

ClickHouse Cloud

— free 30-day trial with $300 credits up to 10 TB of data;

— affordable clusters for developers with full HA < $100/month

— now available in AWS and GCP!

Try it! https://clickhouse.cloud/.

Q&A
