ClickHouse: Features That I Like

ClickHouse Features That I Like

— My favorite features

— Late 2022 and early 2023

Parameterized Views

CREATE VIEW wiki AS SELECT toStartOfMonth(time), sum(hits) AS h, bar(h, 0, max(h) OVER (), 100) FROM wikistat WHERE path = {page:String} GROUP BY 1 ORDER BY 1; SELECT * FROM wiki(page = 'ClickHouse');

Developer: Smita Kulkarni.

Regexp Tree Dictionaries

CREATE DICTIONARY user_agent ( regexp String, name String, version UInt16 ) PRIMARY KEY(regexp) SOURCE(YAMLRegExpTree(PATH '/.../regexp_tree.yaml')) LAYOUT(regexp_tree)

Developers: Vage Ogannisian, Han Fei.

Regexp Tree Dictionaries

- regexp: 'Linux/(\d+[\.\d]*).+tlinux' name: 'TencentOS' version: '\1' - regexp: '\d+/tclwebkit(?:\d+[\.\d]*)' name: 'Andriod' versions: - regexp: '33/tclwebkit' version: 13 - regexp: '3[12]/tclwebkit' version: 12 - regexp: '30/tclwebkit' version: 11 - regexp: '29/tclwebkit' version: 10

Regexp Tree Dictionaries

SELECT dictGet('user_agent', ('name', 'version'), UserAgent);

— Traverses the tree, and determines the values of the attributes.

— The tree can be arbitrarily deep,
  and each nested level can override the values.

Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/109.0.0.0 Safari/537.36

— All regular expressions are checked in a single pass for performance!

— Can be loaded from YAML file or from a table in any source.

Query Result Cache

$ cat /etc/clickhouse-server/config.d/query_cache.yaml query_result_cache: size: 1073741824 max_entries: 1024 max_entry_size: 104857600 max_entry_records: 30000000

SET enable_experimental_query_result_cache = 1;

Developers: Mikhail Stetsyuk, Robert Schulze.

Query Result Cache

Allows to control on per-query basis:

— min query runs to cache the result;
— min query runtime to cache the result;
— max result size to put into cache;
— max staleness to use the cached entry;
— passive usage of the existing entries in cache;
— caching of queries with non-deterministic functions;
— sharing the cache between users;

Developers: Mikhail Stetsyuk, Robert Schulze.

Next steps: compressed cache; on disk cache; cache of intermediate data.

Inverted Full Text Indices

ALTER TABLE hackernews_indexed ADD INDEX inv_idx(text) TYPE inverted; ALTER TABLE hackernews_indexed MATERIALIZE INDEX inv_idx;

Supports tokens and n-grams.

Optimizes hasToken, multiSearchAny, equality comparison...

Developer: Larry Luo, Harry Lee, Robert Schulze.

Inverted Full Text Indices

:) SELECT count() FROM hackernews WHERE hasToken(text, 'ClickHouse') ┌─count()─┐ │ 948 │ └─────────┘ 1 row in set. Elapsed: 0.579 sec. Processed 33.95 million rows, 11.61 GB (58.63 million rows/s., 20.05 GB/s.) :) SELECT count() FROM hackernews_indexed WHERE hasToken(text, 'ClickHouse') ┌─count()─┐ │ 948 │ └─────────┘ 1 row in set. Elapsed: 0.206 sec. Processed 3.71 million rows, 1.32 GB (18.00 million rows/s., 6.43 GB/s.)

Developer: Larry Luo, Harry Lee.

Backup & Restore

— full and incremental backups;

— tables, partitions, databases, all databases;

— full or partial restore;

— a bunch of files or a single archive;

— atomic snapshot for MergeTree,
  best effort snapshot for multiple tables;

Developer — Vitaliy Baranov.

Backup & Restore

BACKUP TABLE t TO File('backup_20220629'); BACKUP TABLE t TO File('backup_20220629.zip'); BACKUP TABLE t TO File('backup_20220630') SETTINGS base_backup = File('backup_20220629'); BACKUP TABLE system.users, system.grants TO ... BACKUP TABLE system.functions TO ...

Developer — Vitaliy Baranov.

Backup & Restore

BACKUP|RESTORE TABLE [db.]table_name [AS [db.]table_name_in_backup] [PARTITION[S] partition_expr [,...]] | DICTIONARY [db.]dictionary_name [AS [db.]name_in_backup] | DATABASE database_name [AS database_name_in_backup] [EXCEPT TABLES ...] | TEMPORARY TABLE table_name [AS table_name_in_backup] | ALL TEMPORARY TABLES [EXCEPT ...] | ALL DATABASES [EXCEPT ...] } [,...] [ON CLUSTER 'cluster_name'] TO|FROM File('path/') | Disk('disk_name', 'path/') | S3(...) [SETTINGS base_backup = File(...) | Disk(...)]

Developer — Vitaliy Baranov.

Reliability

ClickHouse should always work.

Asynchronous Initialization Of Tables

If ZooKeeper is unavailable at server startup,
the ReplicatedMergeTree tables will start in read-only mode
and initialize asynchronously in background
as soon as ZooKeeper will be available.

— the same applicable for ClickHouse Keeper as well;

— especially useful for embedded ClickHouse Keeper;

Developers: Antonio Andelic. Since 22.9.

Retries On INSERT

Session expired. Table is in readonly mode 😠

Never again:

SET insert_keeper_max_retries = 10;

INSERT will survive restarts of ClickHouse Keeper or ZooKeeper
and reconnections.

Developer: Igor Nikonov. Since 22.11.

Faster Reconnection to Keeper

Table is in readonly mode 😠

Was: around one minute for reconnection, for no reason.

Now: milliseconds 🥲

Developer: Raul Marin. Since 22.10.

Flexible Memory Limits

Was: strict per-query limit, max_memory_usage = 10 GB by default.

Now: query can use the memory if it's available;
in case of memory shortage, the most "overcommitted" query is terminated with exception.

Developer: Dmitry Novik.

SQL Compatibility

ClickHouse should support everything you expect.

Analyzer

WITH example AS ( SELECT '2021-01-01' AS date, 1 AS node, 1 AS user) SELECT extra_data FROM ( SELECT join1.* FROM example LEFT JOIN ( SELECT '2021-01-01' AS date, 1 AS extra_data) AS join1 ON example.date = join1.date LEFT JOIN ( SELECT '2021-01-01' AS date) AS join2 ON example.date = join2.date)

Was: Missing columns: 'extra_data' while processing query...

Now: SET allow_experimental_analyzer = 1;
- works perfectly.

Analyzer

SELECT * FROM (SELECT SUM(COALESCE(SEQ_VONR_MO_CALL_CONN_FAIL_TIMES_C, 0)) AS VONR_MO_CALL_CONN_FAIL_TIMES, MT.`102520001` AS `102520001`, MT.`181361814368` AS `181361814368`, MT.`102520102` AS `102520102`, MT.`102520101` AS `102520101`, MT.`102520104` AS `102520104`, MT.`183111861371` AS `183111861371`, MT.`102530101` AS `102530101`, MT.`102540101` AS `102540101`, MT.`102520103` AS `102520103`, MT.`102510101` AS `102510101` FROM ( SELECT COALESCE(SUM(VONR_MO_CALL_CONN_FAIL_TIMES), 0) AS SEQ_VONR_MO_CALL_CONN_FAIL_TIMES_C, COM_FAIL_CAUSE AS `102520001`, NULL AS `102520102`, COM_FAIL_CAUSE AS `102510101`, NULL AS `102520101`, D183111570684_H101.`183111861371` AS `183111861371`, NULL AS `102520104`, NULL AS `102520103`, H_COMPREHENSIVE_FAILURE_CAUSE.`102540101` AS `102540101`, H_COMPREHENSIVE_FAILURE_CAUSE.`102530101` AS `102530101`, concat('14', '-', '255', '-', '255', '-', SIP_RELEASE_CODE) AS `181361814368` FROM TEST_DATABASE.SDR_TEST LEFT JOIN ( SELECT concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID) AS `102510101`, UNIFIED_CAUSE_ID AS `183111861371`, concat(FAILCAUSE, '(', PD, ')') AS NAME_102510101 FROM TEST_DATABASE.DIM_TEST GROUP BY concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID), UNIFIED_CAUSE_ID, concat(FAILCAUSE, '(', PD, ')') ) AS D183111570684_H101 ON COM_FAIL_CAUSE = D183111570684_H101.`102510101` LEFT JOIN ( SELECT concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID) AS `102520001`, SCENE_ID AS `102540101`, CLASS_ID AS `102530101`, SCENE_NAME AS NAME_102540101 FROM TEST_DATABASE.DIM_TEST GROUP BY concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID), SCENE_ID, CLASS_ID, SCENE_NAME ) AS H_COMPREHENSIVE_FAILURE_CAUSE ON COM_FAIL_CAUSE = H_COMPREHENSIVE_FAILURE_CAUSE.`102520001` LEFT JOIN ( SELECT concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID) AS `181361814368`, CAUSE AS NAME_181361814368 FROM TEST_DATABASE.DIM_TEST GROUP BY concat(PROTOCOL_ID, '-', FIRFAILMSG_ID, '-', PD_ID, '-', CAUSE_ID), CAUSE ) AS DIM_FAILCAUSE_ALL_181361814368 ON concat('14', '-', '255', '-', '255', '-', SIP_RELEASE_CODE) = DIM_FAILCAUSE_ALL_181361814368.`181361814368` WHERE (H_COMPREHENSIVE_FAILURE_CAUSE.NAME_102540101 IS NOT NULL) AND (D183111570684_H101.NAME_102510101 IS NOT NULL) AND (DIM_FAILCAUSE_ALL_181361814368.NAME_181361814368 IS NOT NULL) GROUP BY `102520001`, `102520102`, `102510101`, `102520101`, D183111570684_H101.`183111861371`, `102520104`, `102520103`, H_COMPREHENSIVE_FAILURE_CAUSE.`102540101`, H_COMPREHENSIVE_FAILURE_CAUSE.`102530101`, `181361814368` ) AS MT GROUP BY MT.`102520001`, MT.`181361814368`, MT.`102520102`, MT.`102520101`, MT.`102520104`, MT.`183111861371`, MT.`102530101`, MT.`102540101`, MT.`102520103`, MT.`102510101` ) AS ST WHERE ST.VONR_MO_CALL_CONN_FAIL_TIMES > 0 ORDER BY VONR_MO_CALL_CONN_FAIL_TIMES DESC LIMIT 0, 5000

Window Functions Inside Expressions

SELECT y::String || '.' || (y < toYear(today()) - 2000 - 1 ? '*' : m::String) AS Version, (n <= 3 OR (is_lts AND lts_n <= 2)) ? '✔️' : '❌' AS Supported FROM ( SELECT y, m, count() OVER (ORDER BY y DESC, m DESC) AS n, m IN (3, 8) AS is_lts, countIf(is_lts) OVER (ORDER BY y DESC, m DESC) AS lts_n FROM ( WITH extractGroups(version, 'v(\d+)\.(\d+)') AS v, v[1]::INT AS y, v[2]::INT AS m SELECT y, m FROM file('version_date.tsv', TSV, 'version String, date String') ORDER BY y DESC, m DESC LIMIT 1 BY y, m) ) LIMIT 1 BY Version FORMAT Markdown

DELETE Query

SET mutations_sync = 1; ALTER TABLE hits DELETE WHERE Title LIKE '%Mongo%';

— 205 sec (for a table with 100 million records).

DELETE FROM hits WHERE Title LIKE '%Mongo%';

— ??? sec.

Developers: Alexander Gololobov, Jianmei Zhang.

Non-Constant LIKE and match

SELECT DISTINCT repo_name, title
FROM github_events
WHERE title ILIKE (
  repo_name LIKE '%ClickHouse%' ? '%fast%' : '%slow%')
AND repo_name IN ('ClickHouse/ClickHouse', 'elastic/elasticsearch')

Now I can put LIKE inside LIKE and looks like you're going to like it.

Developer: Robert Schulze. Since 22.6.

Performance

ClickHouse never slows down!

Performance Optimizations

Speed-up of SELECT with FINAL modifier.

It "simply" improves performance up to 4 times.

Especially for complex transforms like Collapsing and Replacing.

Developer: Nikita Taranov.

More Performance

Optimize COUNT(DISTINCT ...) for low number of GROUP BY keys.

Optimize GROUP BY with CPU prefetcher.

Optimize GROUP BY with better block sizes.

Developer: Nikita Taranov.

New JOIN algorithms

— "direct" algorithm:
  to join with key-value tables by direct lookups a.k.a. nested loops.
  Good if the left table is small, but the right table is like a large dictionary.
  Good to use in MATERIALIZED VIEW queries.

— "parallel_hash" algorithm:
  speed-up if the right hand table is large.

— "full_sorting_merge" algorithm:
  when right hand side is large
  and does not fit in memory and does not allow lookups.

— "grace_hash" algorithm:
  since in 22.12.

Developer: Vladimir Cherkasov, lgbo-ustc.

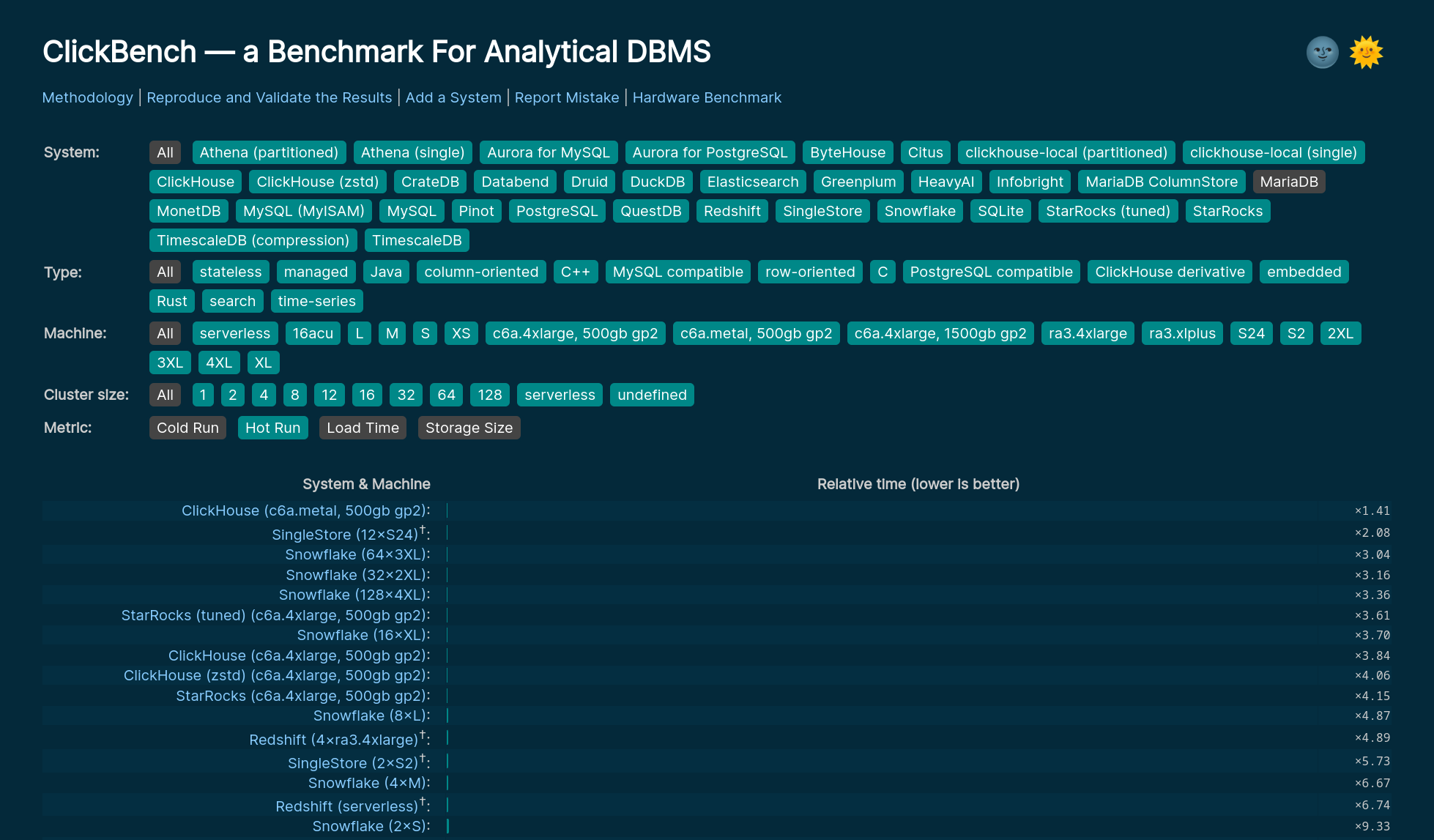

Updated Benchmark

Integrations

ClickHouse can work as a server (clickhouse-server)
or as a tool without installation (clickhouse-local).

ClickHouse can store the data
or process externally stored data on the fly.

External data:
— remote databases: MySQL, PostgreSQL, MongoDB, ODBC, JDBC...
— object storages: S3, HDFS, Azure, COSN, OSS...
— from URL and local files;

All possible data formats:
— text: CSV, TSV, JSON, Values, MySQLDump, Regexp...
— binary: Parquet, Arrow, ORC, Avro, Protobuf, MsgPack...
— schemaful and schemaless;

Data Lakes

Now ClickHouse supports Apache Hudi, Delta Lake, and Iceberg
for SELECT queries.

SELECT count() FROM deltaLake( 'https://clickhouse-public-datasets.s3.amazonaws.com/delta_lake/hits/') WHERE URL LIKE '%google%' -- 4.396 sec.

Developers: Daniil Rubin, Ksenia Sumarokova, Flynn ucasfl. Since 22.11.

Integrations

Visualizations:
— official ClickHouse plugin for Grafana;
— official support for Superset;
— HEX and Deepnote support.

Data ingestion and processing:
— Kafka Connect integration;
— Airflow, dbt support.

Language drivers:
— official Node.JS driver;
— optimized Go driver;
— a new Python client.

Embedded Dashboards

https://play.clickhouse.com/dashboard

Operations

ClickHouse is easy to configure for your needs.

Dynamic Disks

Was:

storage_configuration: disks: web: type: web endpoint: 'https://clickhouse-public-datasets.s3.amazonaws.com/web/' policies: web: volumes: main: disk: web

ATTACH TABLE hits ... ENGINE = MergeTree ORDER BY CounterID SETTINGS storage_policy = 'web'

Dynamic Disks

Slightly better:

storage_configuration: disks: web: type: web endpoint: 'https://clickhouse-public-datasets.s3.amazonaws.com/web/'

ATTACH TABLE hits ... ENGINE = MergeTree ORDER BY CounterID SETTINGS disk = 'web'

No need for "storage policy" in simple cases.

Dynamic Disks

Much better:

ATTACH TABLE hits ... ENGINE = MergeTree ORDER BY CounterID SETTINGS disk = disk( type = 'web', endpoint = 'https://clickhouse-public-datasets.s3.amazonaws.com/web/')

100% dynamic configuration, no need to touch the configuration files.

Developers: Ksenia Sumarokova.

Composable Protocols

So, ClickHouse supports a lot of protocols:

— HTTP
— HTTPs
— Native TCP
— Native TCP wrapped in PROXYv1
— Native TCP with TLS
— MySQL (with TLS support)
— PostgreSQL (with TLS support)
— GRPC (with TLS)
— Replication protocol over HTTP
— Replication protocol over HTTPs
— Keeper client-server protocol;
— Keeper consensus protocol;
— ...

Composable Protocols

So, ClickHouse supports a lot of protocols.

How to configure all of them? What if:

— server has multiple network interfaces?
— enable one protocol on multiple ports?
— I want native TCP for localhost only and HTTPs from everywhere?
— I want different TLS certificates for different protocols?
— I want to wrap one protocol in another?

Developer: Yakov Olkhovskiy. Since 22.10.

<protocols> <tcp> <type>tcp</type> <host>::</host> <port>9000</port> <description>native protocol</description> </tcp> <tcp_secure> <type>tls</type> <impl>tcp</impl> <port>9440</port> <description>secure native protocol</description> </tcp_secure> <tcp_endpoint> <impl>tcp</impl> <host>0.0.0.0</host> <port>9001</port> <description>native protocol, another</description> </tcp_endpoint> <tcp_proxy> <type>proxy1</type> <impl>tcp</impl> <port>9100</port> <description>native protocol with PROXYv1</description> </tcp_proxy>

Q&A
